H Frame Hydraulic Press800T Nominal Force
800T Hydraulic Press for SMC BMC FRP Composite Material GMT Fiberglass Carbon Fiber Molding Forming Pressing
Overview

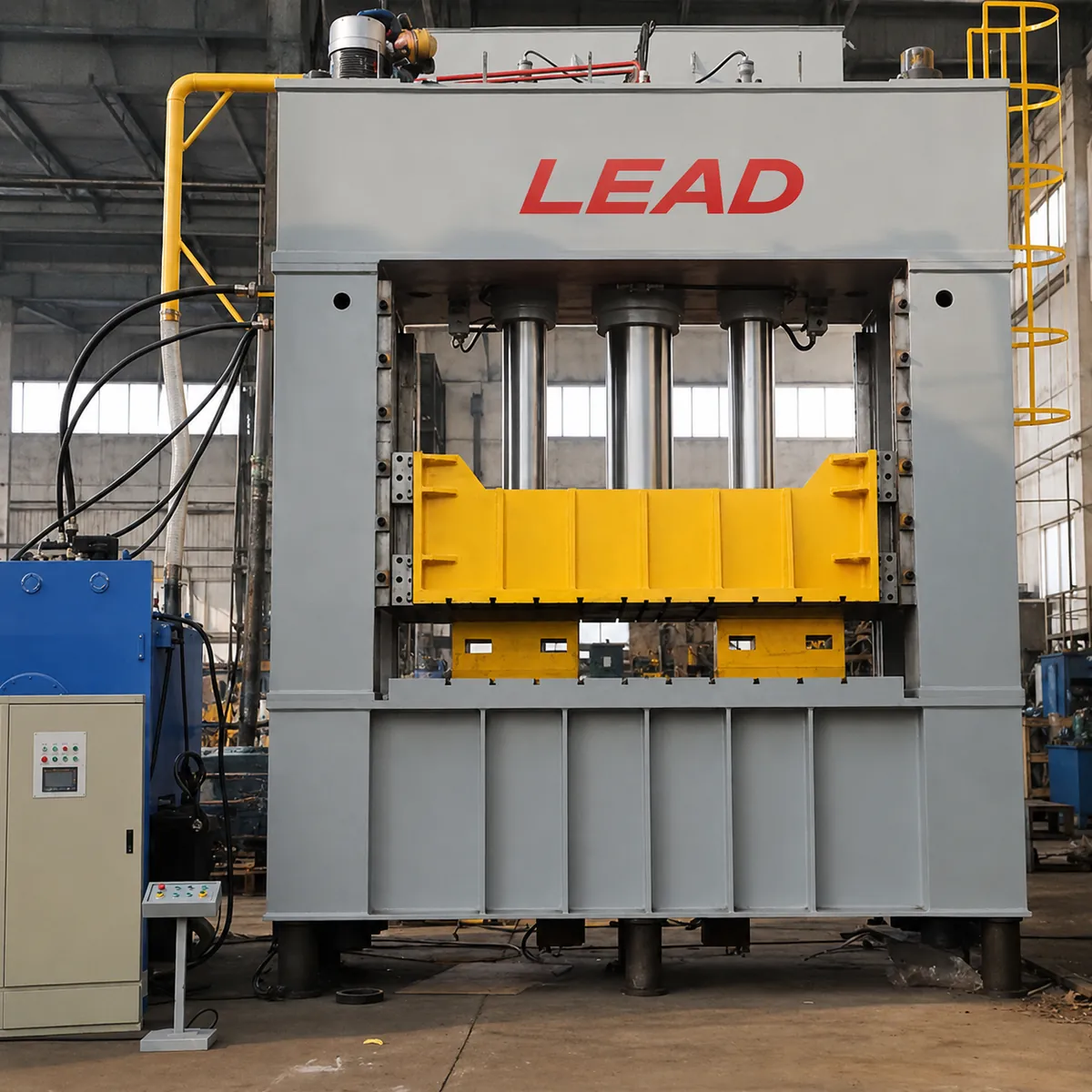

The LD-800T H frame hydraulic press is built for sMC/BMC composite and FRP molding, combining a rigid welded H-frame structure with high guiding precision and strong resistance to eccentric loads. Cartridge-valve hydraulics and PLC controls deliver smooth, repeatable cycles for continuous production. Table size, stroke, and automation level are customized to your process.
Technical Specifications
- Nominal force
- 800T
- Slide stroke
- 550 mm
- Max. opening height
- 1100 mm
- Worktable size
- 1400 x 1300 mm
- Motor power
- 37 kW
- Machine weight
- approx. 30 T
- Customization options
- worktable size, stroke, opening height, ejector, servo system, light curtain, and PLC/touch-screen controls.
- 110% load test before shipment
- OEM/ODM customization available
- English manuals & test report
- Global installation support
Technical Description
The LD-800T H frame hydraulic press is built for sMC/BMC composite and FRP molding, combining a rigid welded H-frame structure with high guiding precision and strong resistance to eccentric loads. Cartridge-valve hydraulics and PLC controls deliver smooth, repeatable cycles for continuous production. Table size, stroke, and automation level are customized to your process.
Technical parameters (for reference):
Nominal force: 800T
Slide stroke: 550 mm
Max. opening height: 1100 mm
Worktable size: 1400 x 1300 mm
Motor power: 37 kW
Machine weight: approx. 30 T
Customization options: worktable size, stroke, opening height, ejector, servo system, light curtain, and PLC/touch-screen controls.
