Four Column Hydraulic Press100T Nominal Force
100T Hydraulic Press for Film Membrane Laminating Pressing Molding Forming Covering Coating
Overview

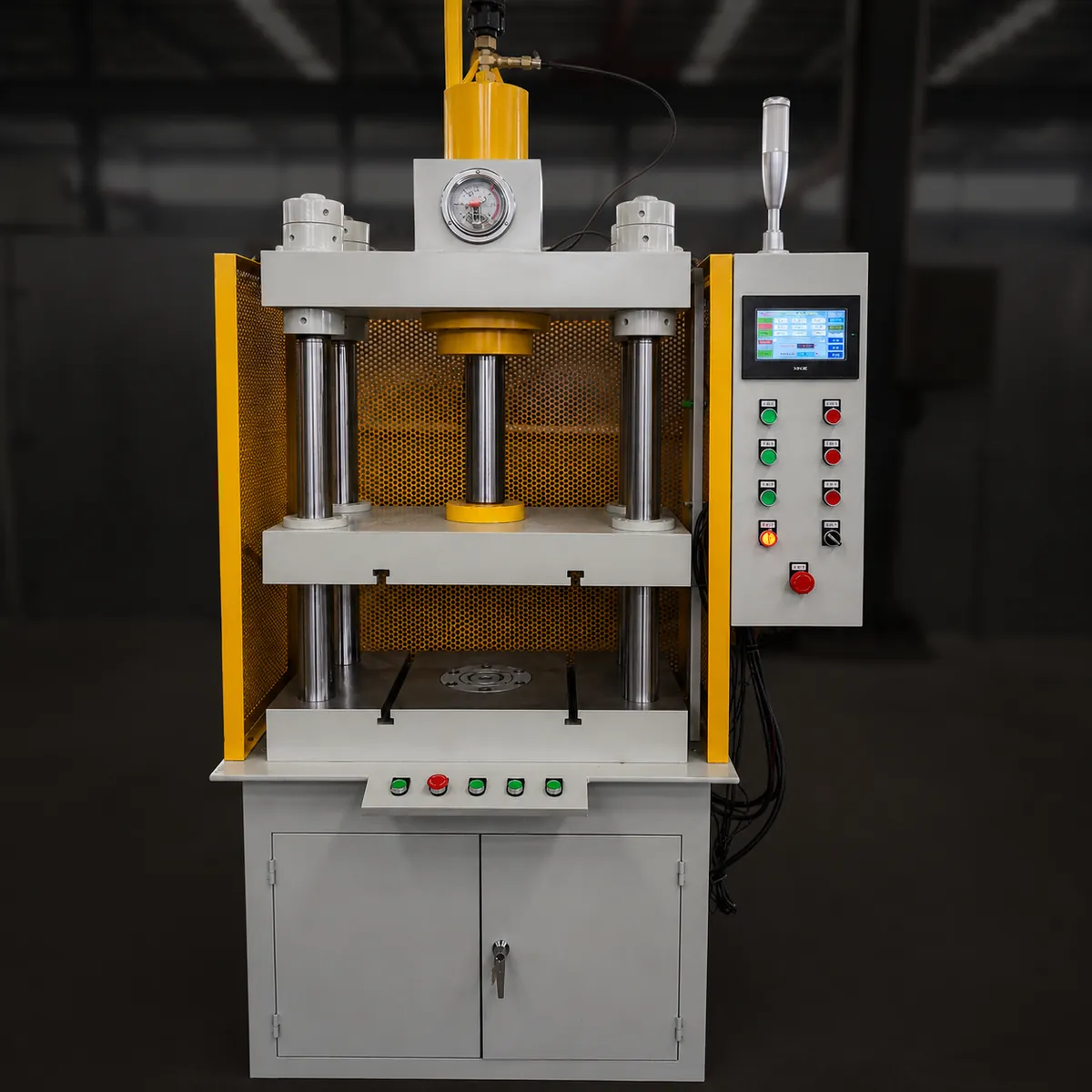

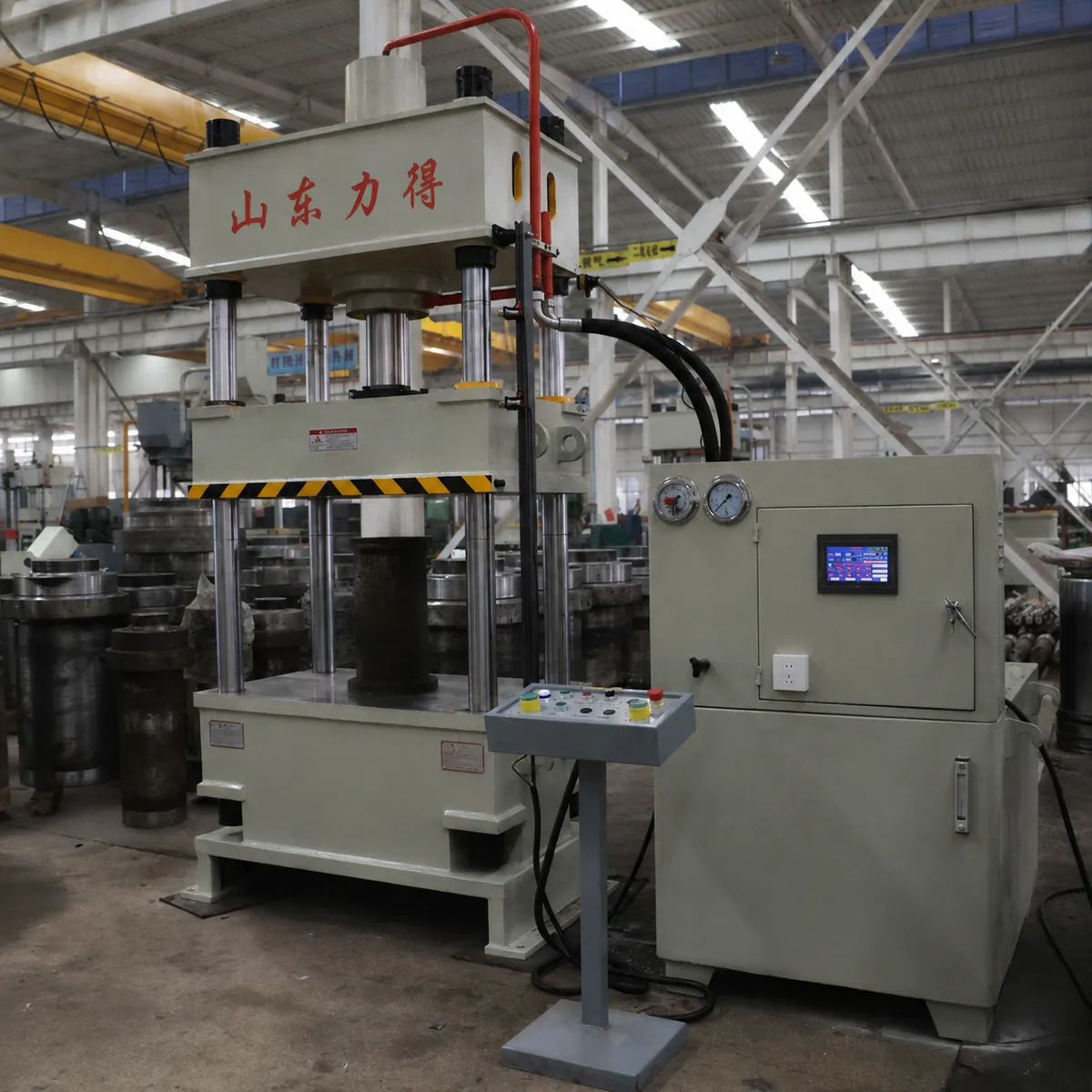

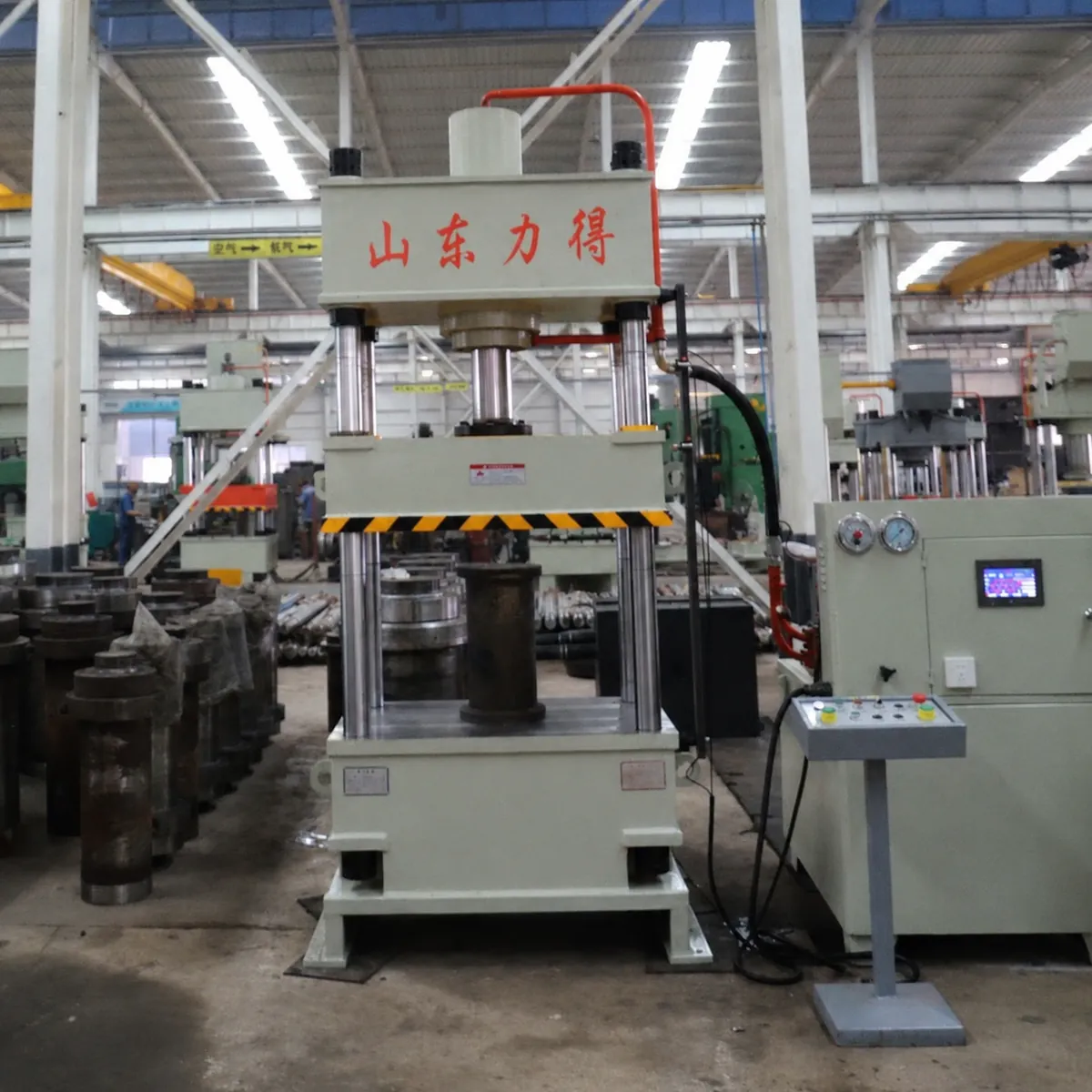

The LD-100T four column hydraulic press handles metal forming and stamping with a three-beam four-column structure that distributes the 100T nominal force evenly across the worktable. Servo-ready hydraulics, pressure holding, and programmable stroke make it a flexible platform for stamping, deep drawing, molding, and assembly work.
Technical Specifications
- Nominal force
- 100T
- Slide stroke
- 500 mm
- Max. opening height
- 1000 mm
- Worktable size
- 900 x 700 mm
- Motor power
- 11 kW
- Machine weight
- approx. 7 T

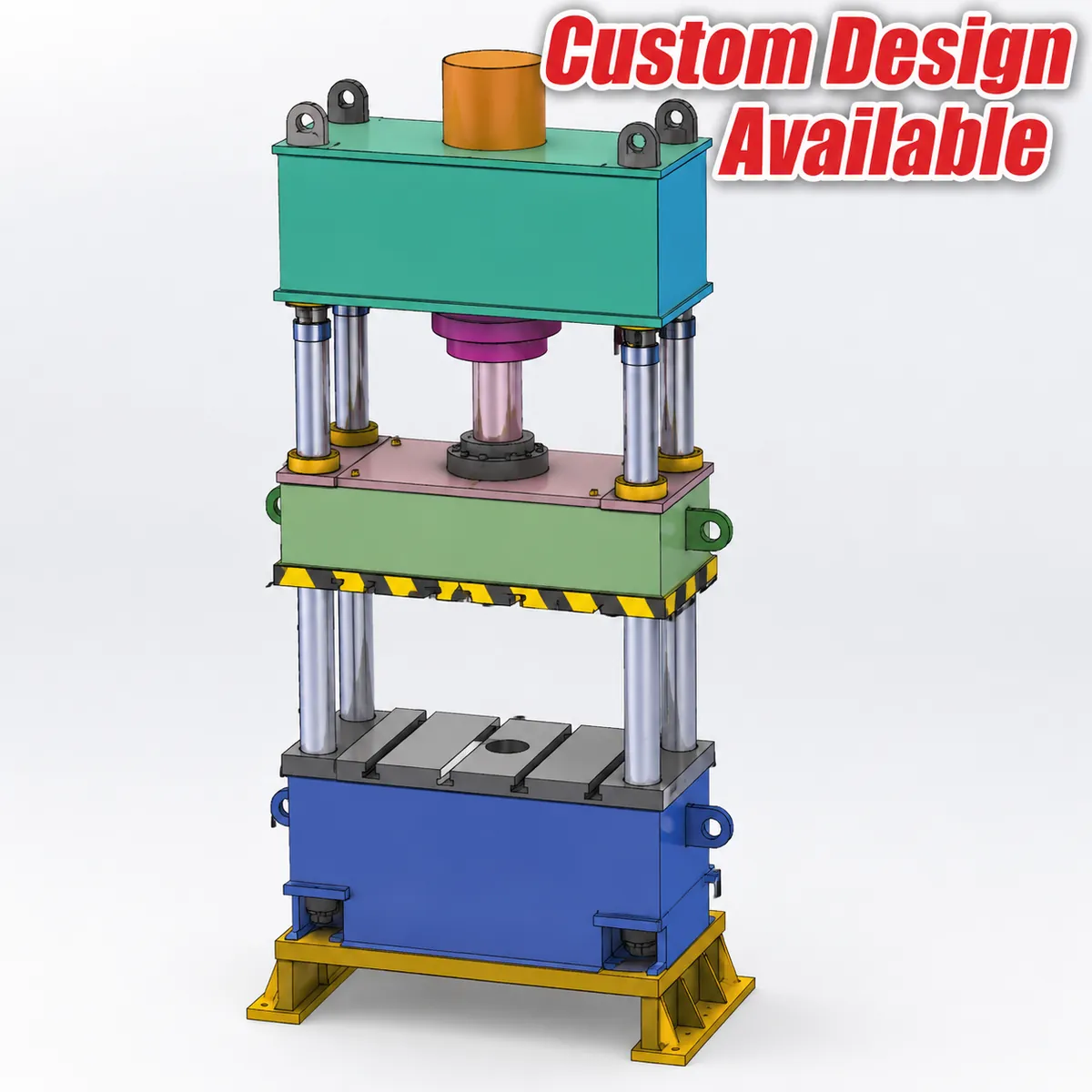

- Customization options
- worktable size, stroke, opening height, ejector, servo system, light curtain, and PLC/touch-screen controls.
- 110% load test before shipment
- OEM/ODM customization available
- English manuals & test report
- Global installation support
Technical Description
The LD-100T four column hydraulic press handles metal forming and stamping with a three-beam four-column structure that distributes the 100T nominal force evenly across the worktable. Servo-ready hydraulics, pressure holding, and programmable stroke make it a flexible platform for stamping, deep drawing, molding, and assembly work.
Technical parameters (for reference):
Nominal force: 100T
Slide stroke: 500 mm
Max. opening height: 1000 mm
Worktable size: 900 x 700 mm
Motor power: 11 kW
Machine weight: approx. 7 T
Customization options: worktable size, stroke, opening height, ejector, servo system, light curtain, and PLC/touch-screen controls.
