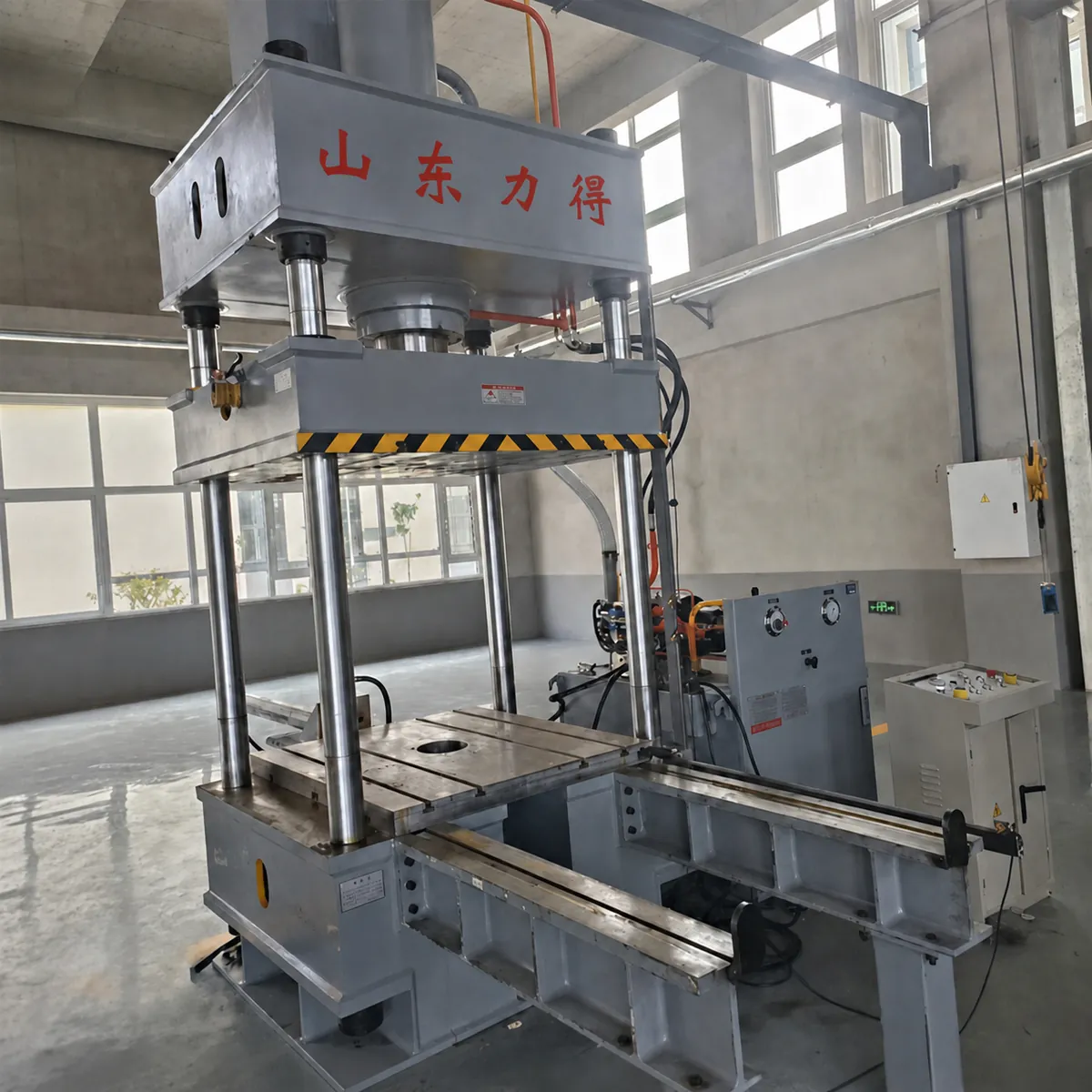

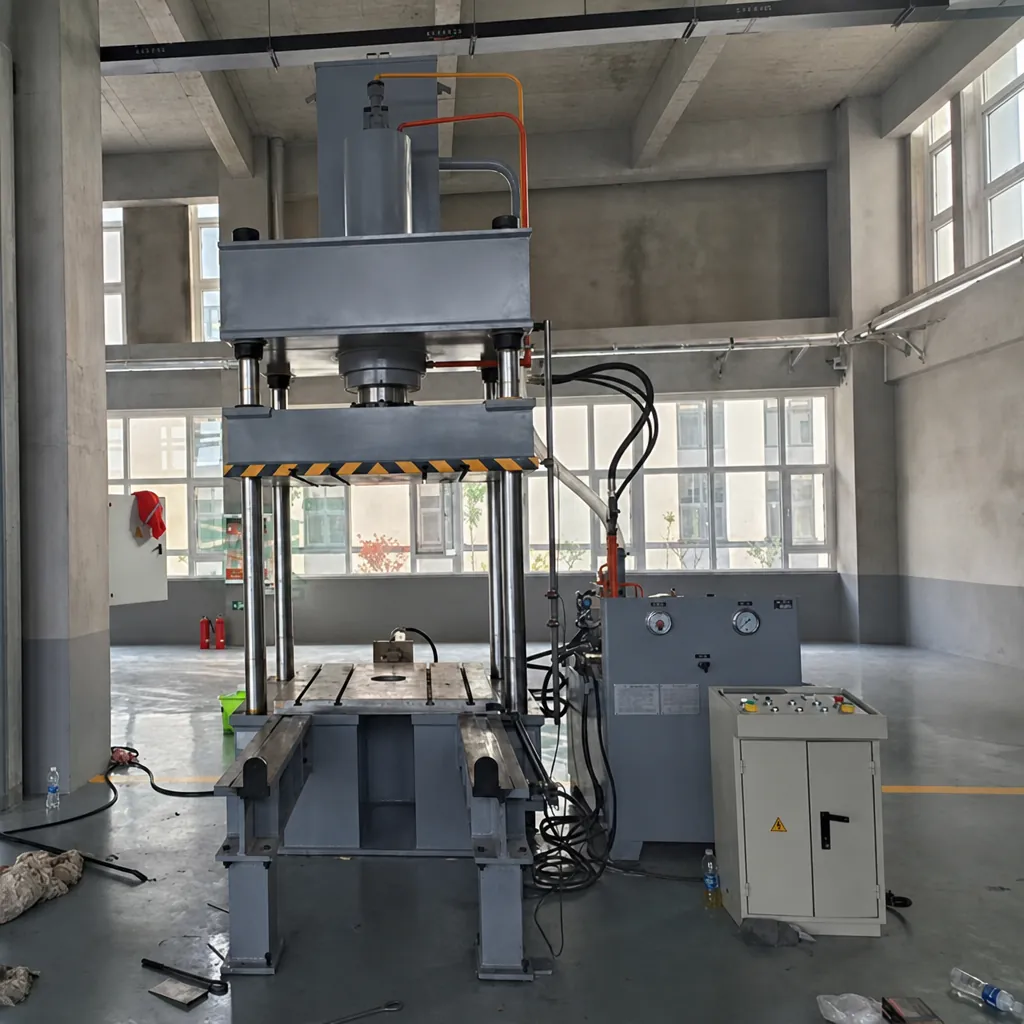

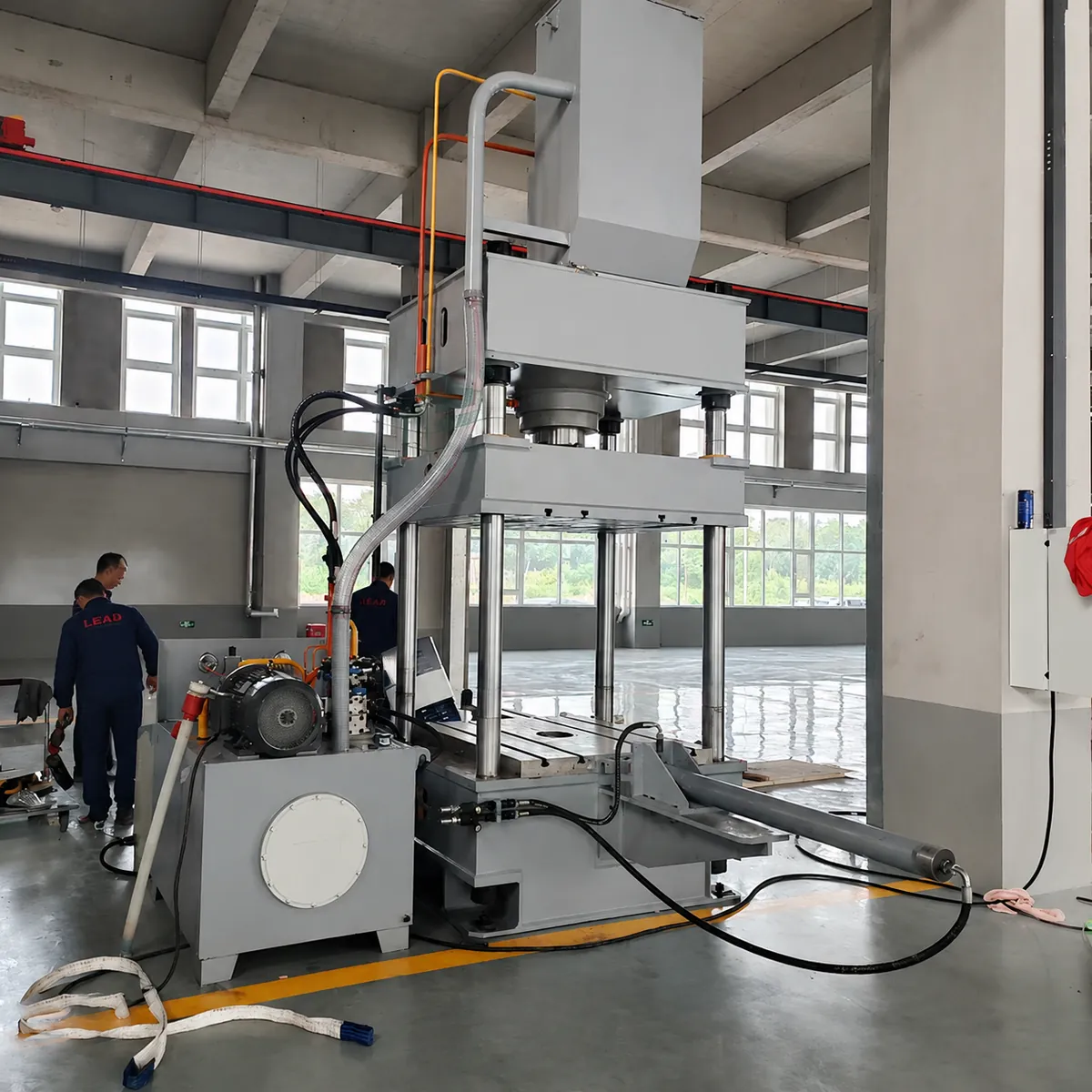

Four Column Hydraulic Press200T Nominal Force
200T Hydraulic Press with Movable Sliding Worktable for Metal Steel Stainless Steel Iron Sheet Plate Stamping Deep Drawing
Overview
The LD-200T four column hydraulic press handles deep drawing of sheet metal parts with a three-beam four-column structure that distributes the 200T nominal force evenly across the worktable. Servo-ready hydraulics, pressure holding, and programmable stroke make it a flexible platform for stamping, deep drawing, molding, and assembly work.
Technical Specifications
- Nominal force
- 200T
- Slide stroke
- 600 mm
- Max. opening height
- 1000 mm
- Worktable size
- 1000 x 900 mm
- Motor power
- 15 kW
- Machine weight
- approx. 12 T

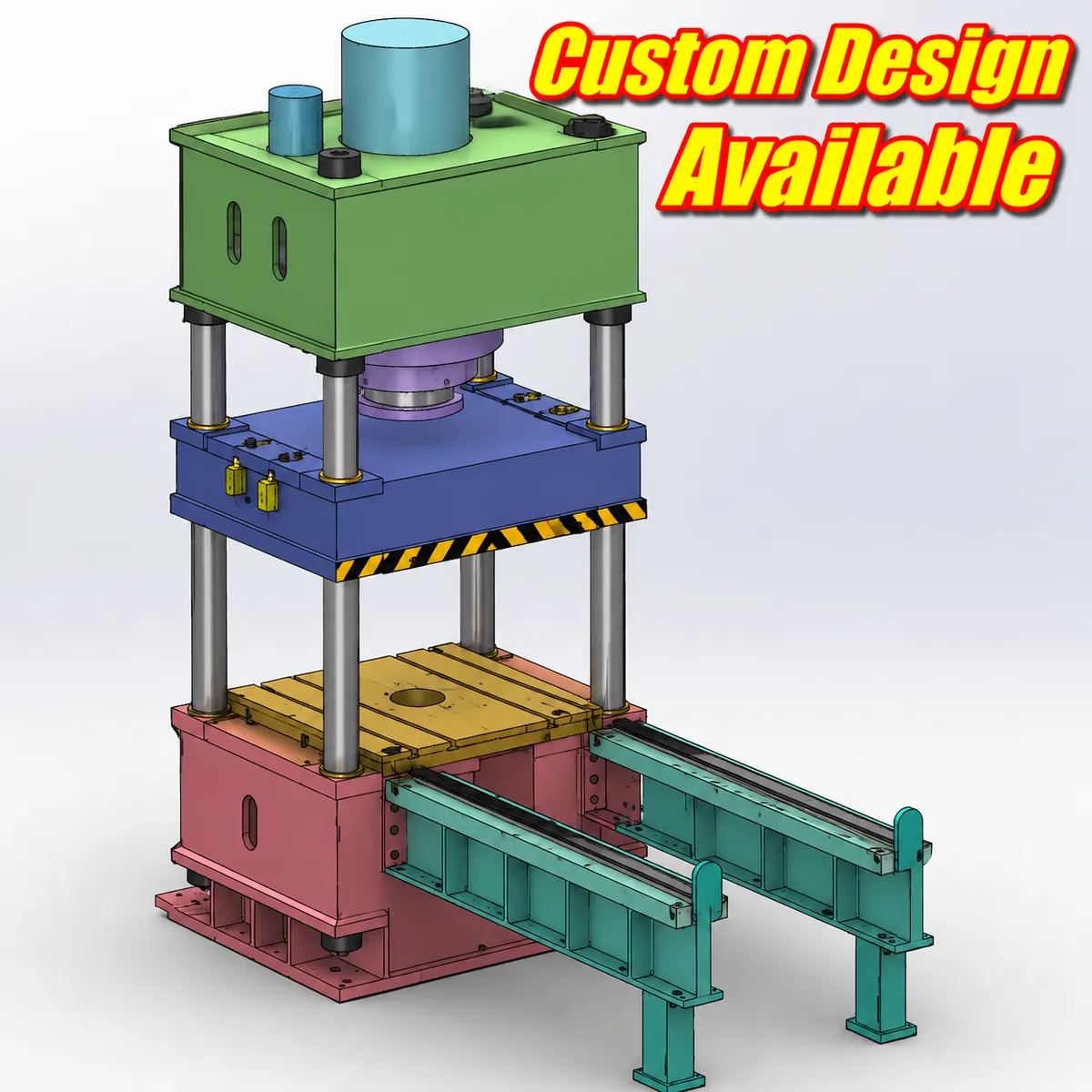

- Customization options
- worktable size, stroke, opening height, ejector, servo system, light curtain, and PLC/touch-screen controls.
- 110% load test before shipment
- OEM/ODM customization available
- English manuals & test report
- Global installation support
Technical Description
The LD-200T four column hydraulic press handles deep drawing of sheet metal parts with a three-beam four-column structure that distributes the 200T nominal force evenly across the worktable. Servo-ready hydraulics, pressure holding, and programmable stroke make it a flexible platform for stamping, deep drawing, molding, and assembly work.
Technical parameters (for reference):
Nominal force: 200T
Slide stroke: 600 mm
Max. opening height: 1000 mm
Worktable size: 1000 x 900 mm
Motor power: 15 kW
Machine weight: approx. 12 T
Customization options: worktable size, stroke, opening height, ejector, servo system, light curtain, and PLC/touch-screen controls.
