Four Column Hydraulic Press250T Nominal Force

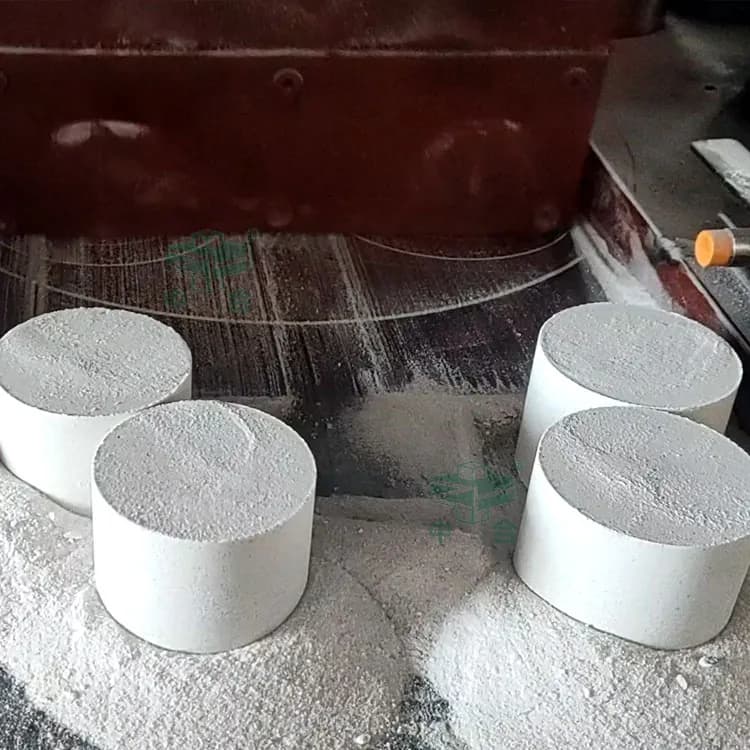

250T Hydraulic Press for Metal Powder Forming Compacting Molding Pressing Ceramic Graphite Coal Mineral Briquetting
Overview

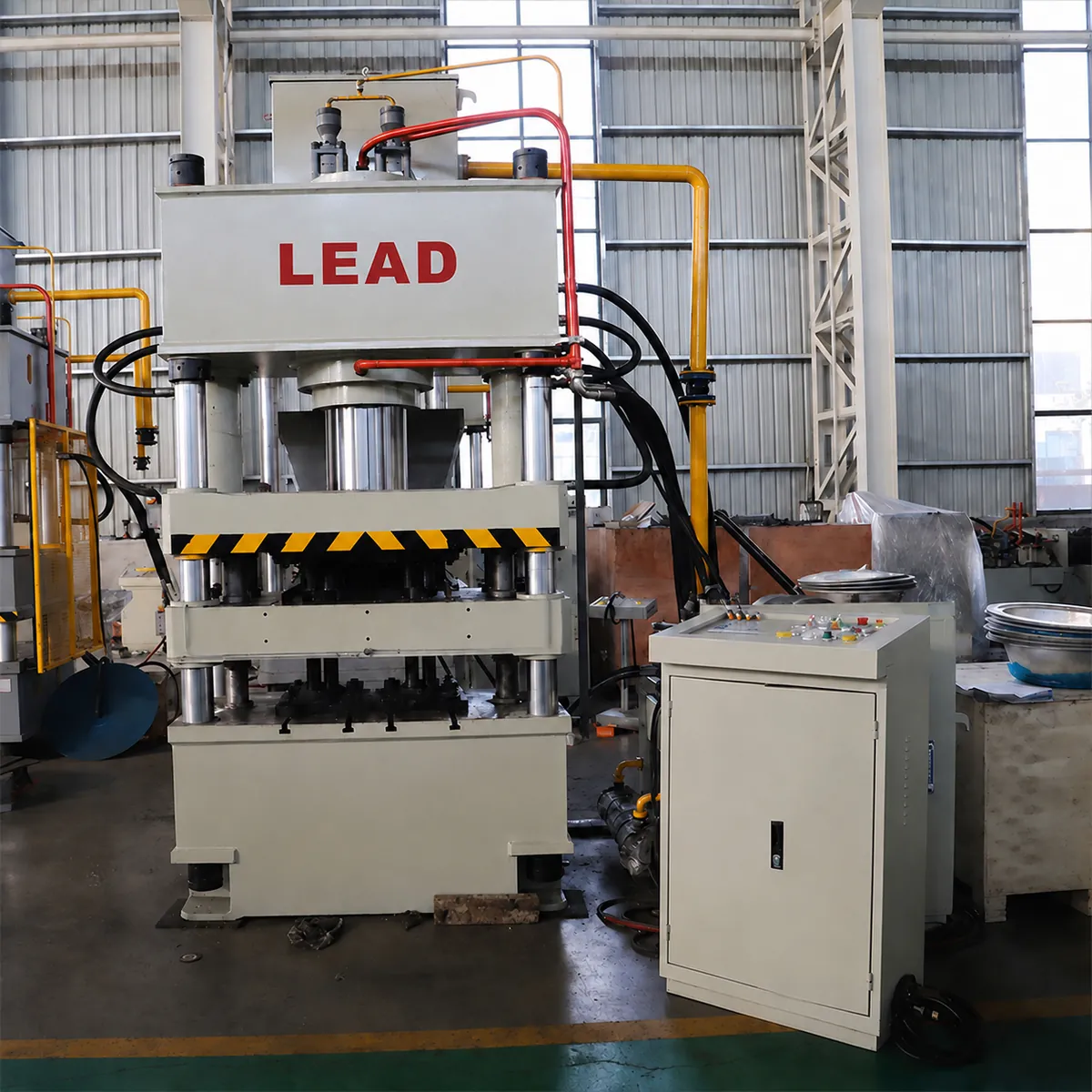

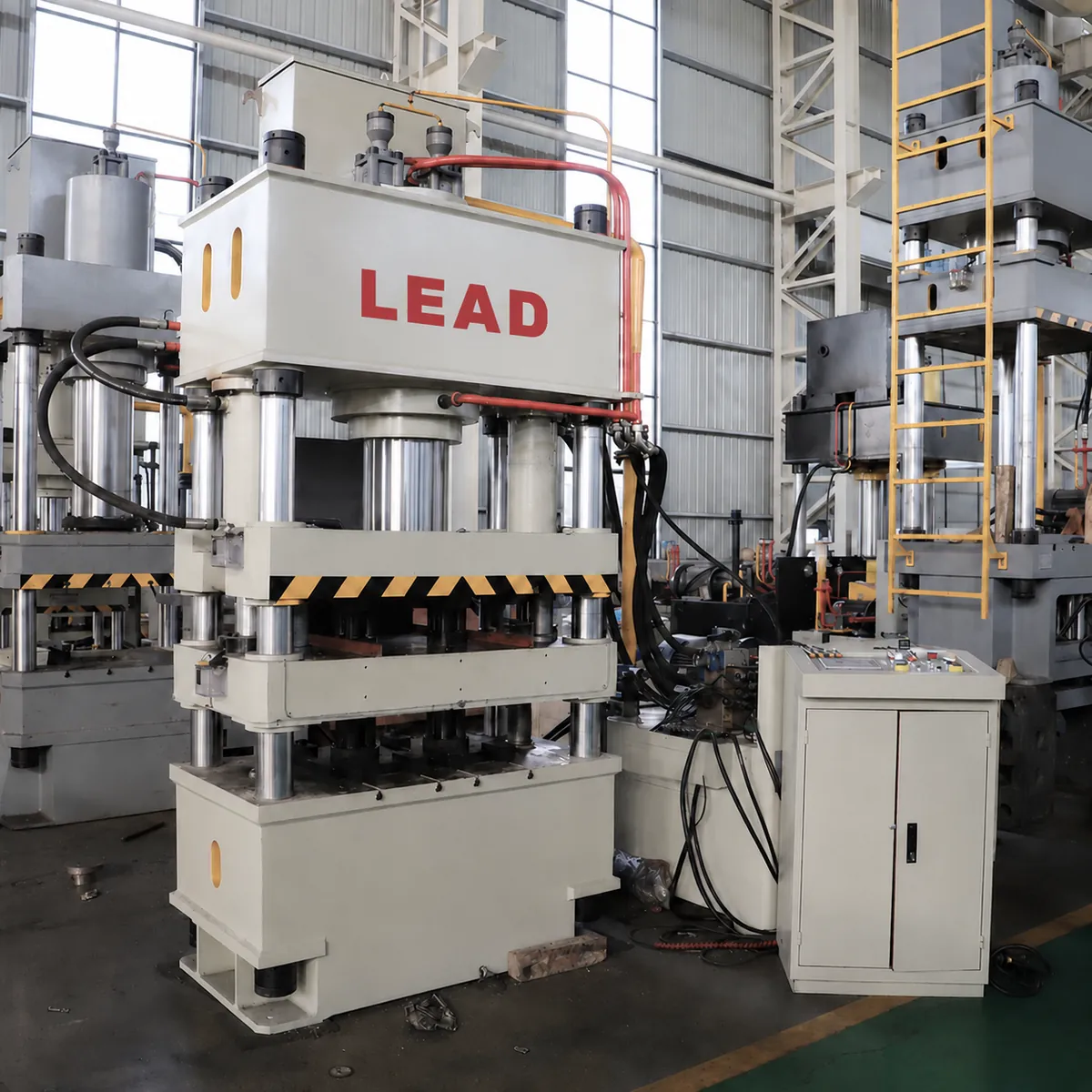

The LD-250T four column hydraulic press handles ceramic and refractory molding with a three-beam four-column structure that distributes the 250T nominal force evenly across the worktable. Servo-ready hydraulics, pressure holding, and programmable stroke make it a flexible platform for stamping, deep drawing, molding, and assembly work.
Technical Specifications
- Nominal force
- 250T
- Slide stroke
- 600 mm
- Max. opening height
- 1000 mm
- Worktable size
- 1000 x 900 mm
- Motor power
- 15 kW
- Machine weight
- approx. 12 T
- Customization options
- worktable size, stroke, opening height, ejector, servo system, light curtain, and PLC/touch-screen controls.
- 110% load test before shipment
- OEM/ODM customization available
- English manuals & test report
- Global installation support
Technical Description
The LD-250T four column hydraulic press handles ceramic and refractory molding with a three-beam four-column structure that distributes the 250T nominal force evenly across the worktable. Servo-ready hydraulics, pressure holding, and programmable stroke make it a flexible platform for stamping, deep drawing, molding, and assembly work.
Technical parameters (for reference):
Nominal force: 250T
Slide stroke: 600 mm
Max. opening height: 1000 mm
Worktable size: 1000 x 900 mm
Motor power: 15 kW
Machine weight: approx. 12 T

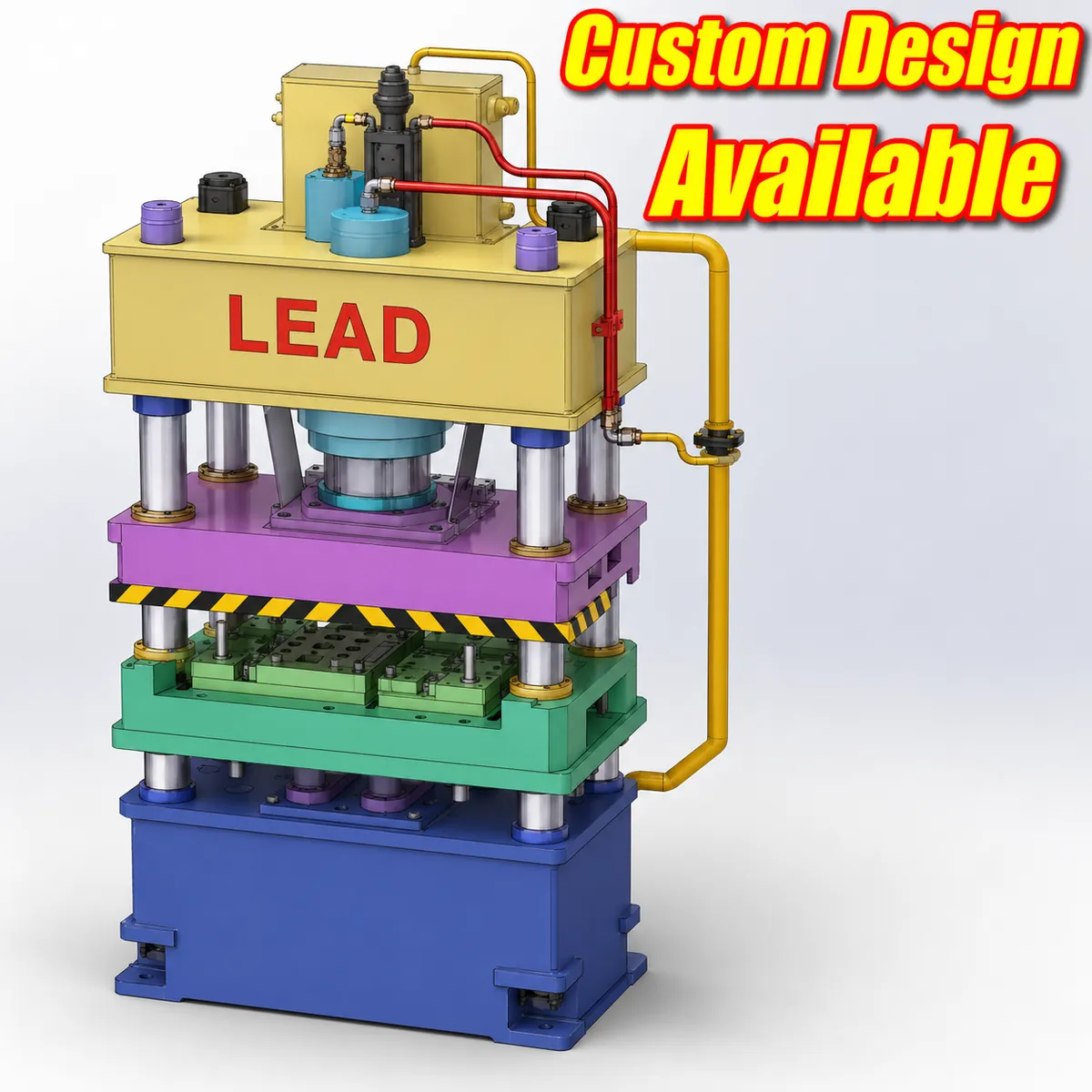

Customization options: worktable size, stroke, opening height, ejector, servo system, light curtain, and PLC/touch-screen controls.
