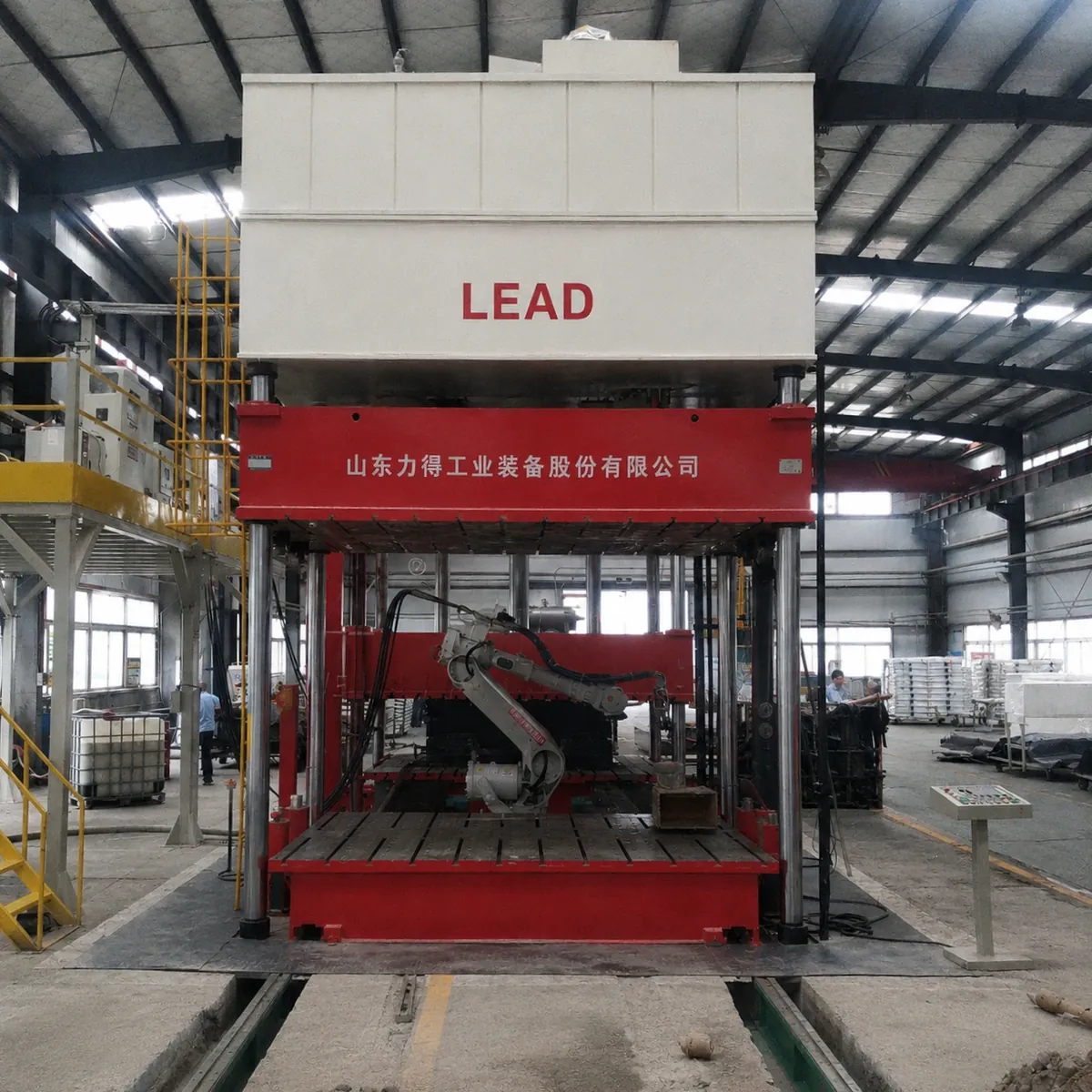

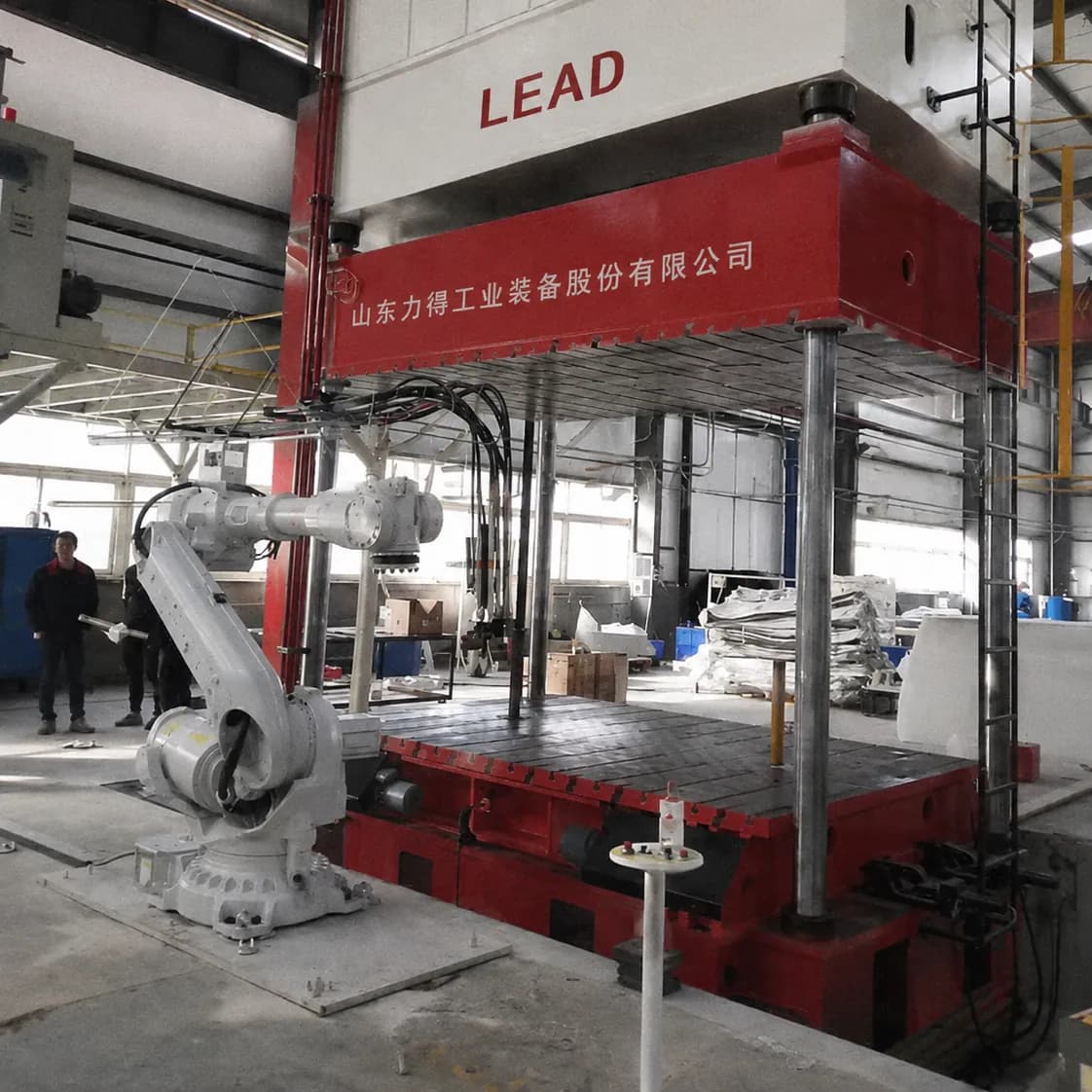

Four Column Hydraulic Press315T Nominal Force
315T Hydraulic Press for Automotive Car Interior Trim Dashboard Door Panel Molding Forming Pressing Stamping
Overview
The LD-315T four column hydraulic press handles metal forming and stamping with a three-beam four-column structure that distributes the 315T nominal force evenly across the worktable. Servo-ready hydraulics, pressure holding, and programmable stroke make it a flexible platform for stamping, deep drawing, molding, and assembly work.
Technical Specifications
- Nominal force
- 315T
- Slide stroke
- 800 mm
- Max. opening height
- 1250 mm
- Worktable size
- 1260 x 1200 mm
- Motor power
- 22 kW
- Machine weight
- approx. 18 T

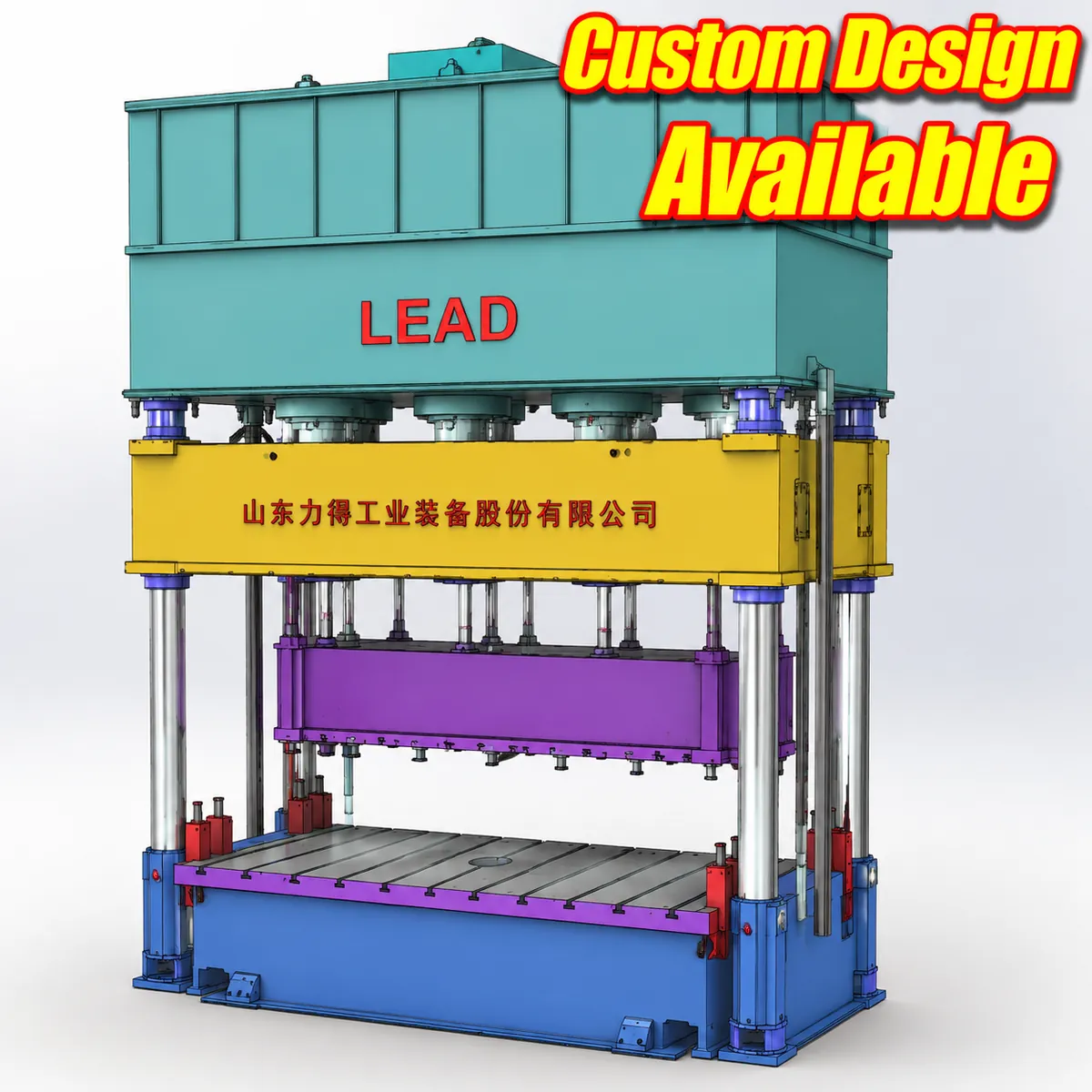

- Customization options
- worktable size, stroke, opening height, ejector, servo system, light curtain, and PLC/touch-screen controls.
- 110% load test before shipment
- OEM/ODM customization available
- English manuals & test report
- Global installation support
Technical Description
The LD-315T four column hydraulic press handles metal forming and stamping with a three-beam four-column structure that distributes the 315T nominal force evenly across the worktable. Servo-ready hydraulics, pressure holding, and programmable stroke make it a flexible platform for stamping, deep drawing, molding, and assembly work.
Technical parameters (for reference):
Nominal force: 315T
Slide stroke: 800 mm
Max. opening height: 1250 mm
Worktable size: 1260 x 1200 mm
Motor power: 22 kW
Machine weight: approx. 18 T
Customization options: worktable size, stroke, opening height, ejector, servo system, light curtain, and PLC/touch-screen controls.
