Four Column Hydraulic Press40T Nominal Force
40T Hydraulic Press for Metal Steel Stainless Steel Iron Sheet Plate Stamping Punching Deep Drawing Forming
Overview

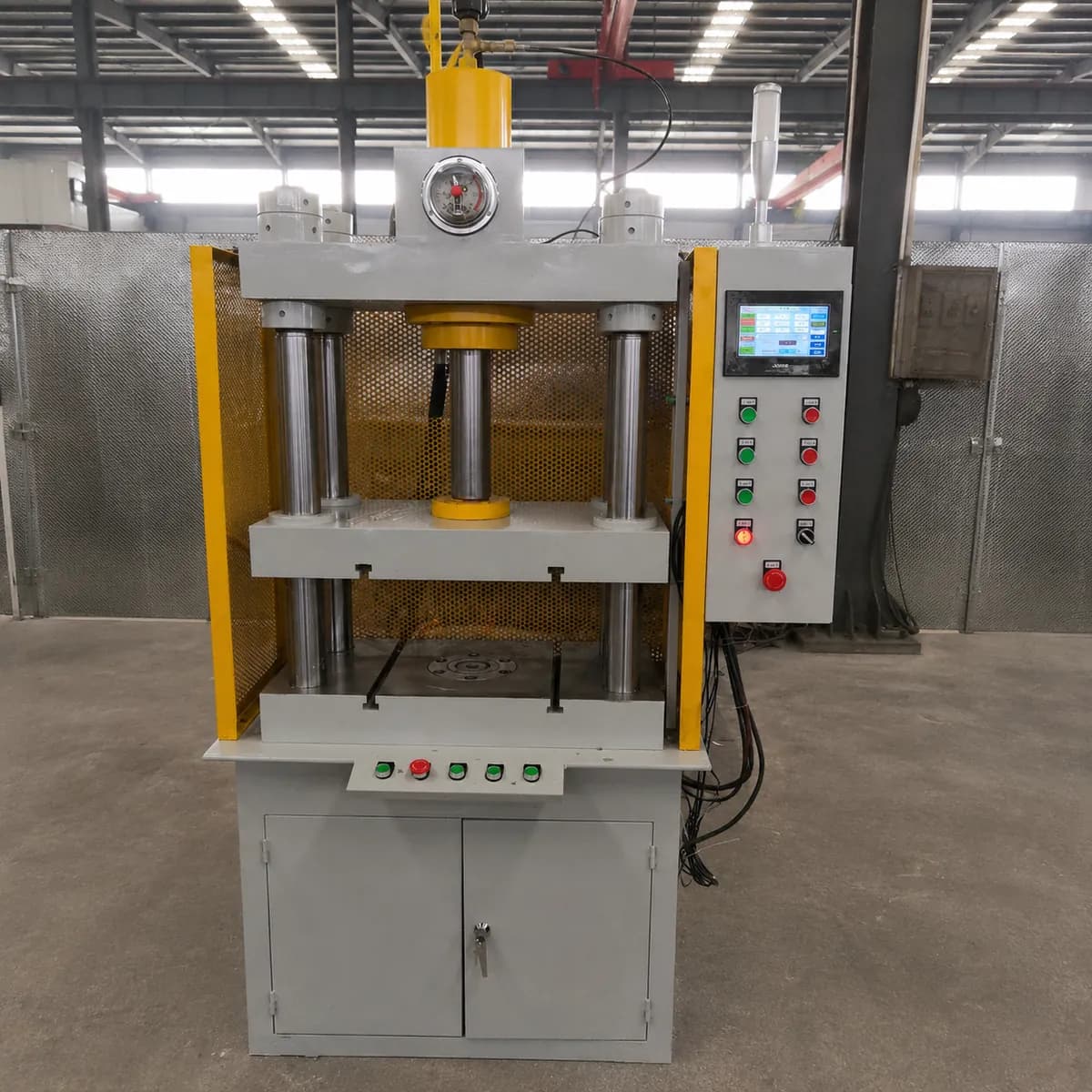

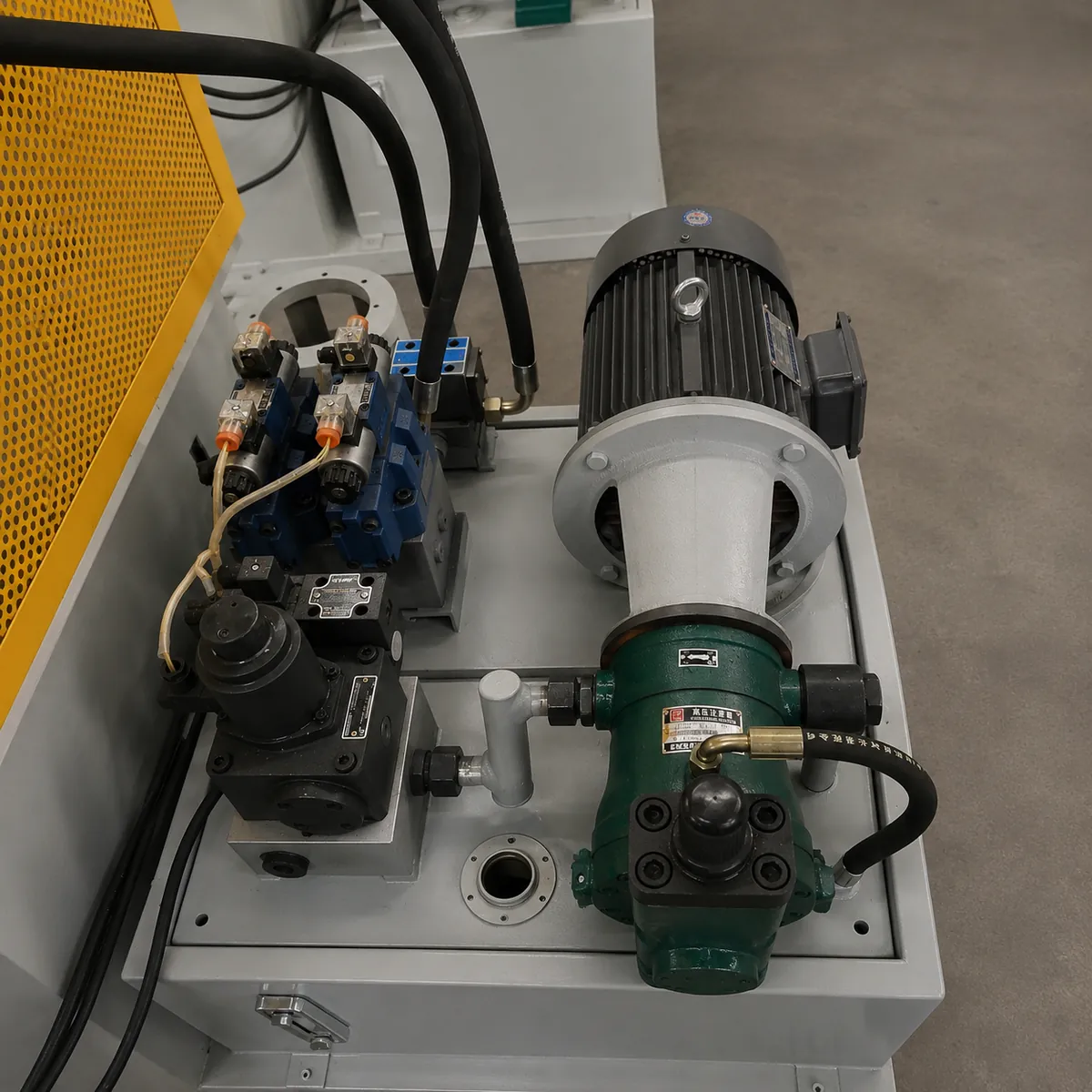

The LD-40T four column hydraulic press handles deep drawing of sheet metal parts with a three-beam four-column structure that distributes the 40T nominal force evenly across the worktable. Servo-ready hydraulics, pressure holding, and programmable stroke make it a flexible platform for stamping, deep drawing, molding, and assembly work.
Technical Specifications
- Nominal force
- 40T
- Slide stroke
- 400 mm
- Max. opening height
- 700 mm
- Worktable size
- 500 x 500 mm
- Motor power
- 5.5 kW
- Machine weight
- approx. 2.8 T
- Customization options

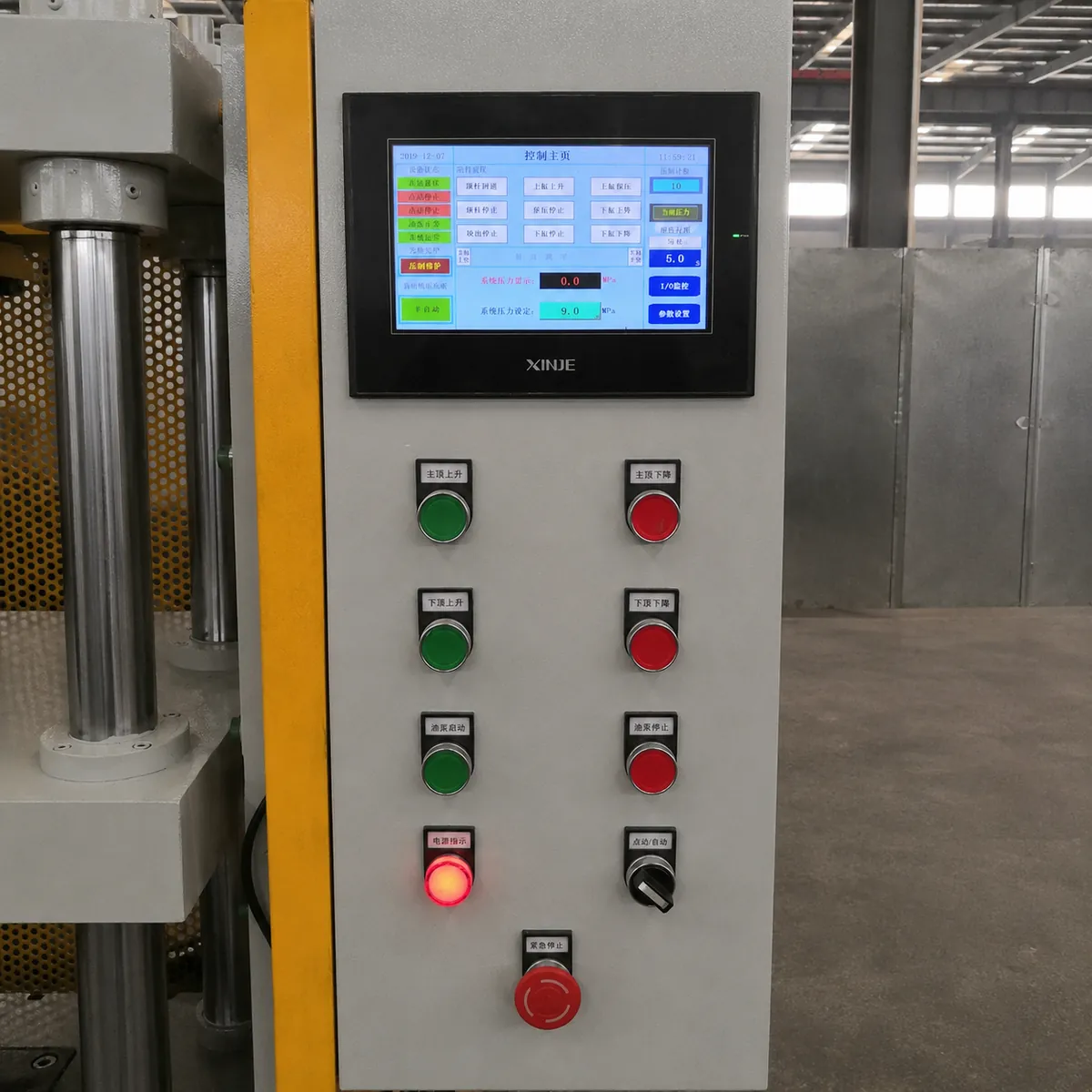

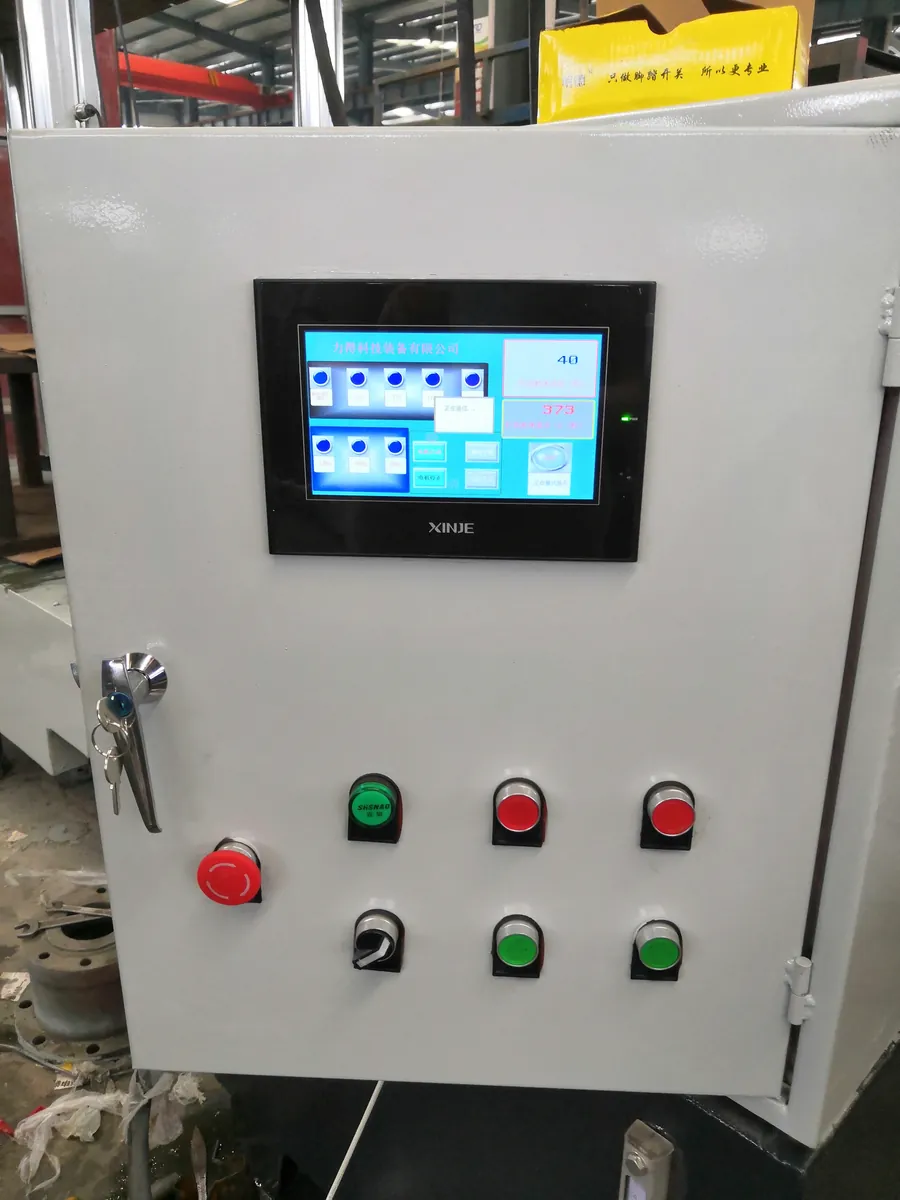

- worktable size, stroke, opening height, ejector, servo system, light curtain, and PLC/touch-screen controls.
- 110% load test before shipment
- OEM/ODM customization available
- English manuals & test report
- Global installation support
Technical Description
The LD-40T four column hydraulic press handles deep drawing of sheet metal parts with a three-beam four-column structure that distributes the 40T nominal force evenly across the worktable. Servo-ready hydraulics, pressure holding, and programmable stroke make it a flexible platform for stamping, deep drawing, molding, and assembly work.
Technical parameters (for reference):
Nominal force: 40T
Slide stroke: 400 mm
Max. opening height: 700 mm
Worktable size: 500 x 500 mm
Motor power: 5.5 kW
Machine weight: approx. 2.8 T
Customization options: worktable size, stroke, opening height, ejector, servo system, light curtain, and PLC/touch-screen controls.
