Door Panel Embossing Machine3000T Nominal Force
3000T Single Action Steel Wood Metal Door Panel Embossing Machine Press for Security Anti-Theft Interior Exterior Door
Overview

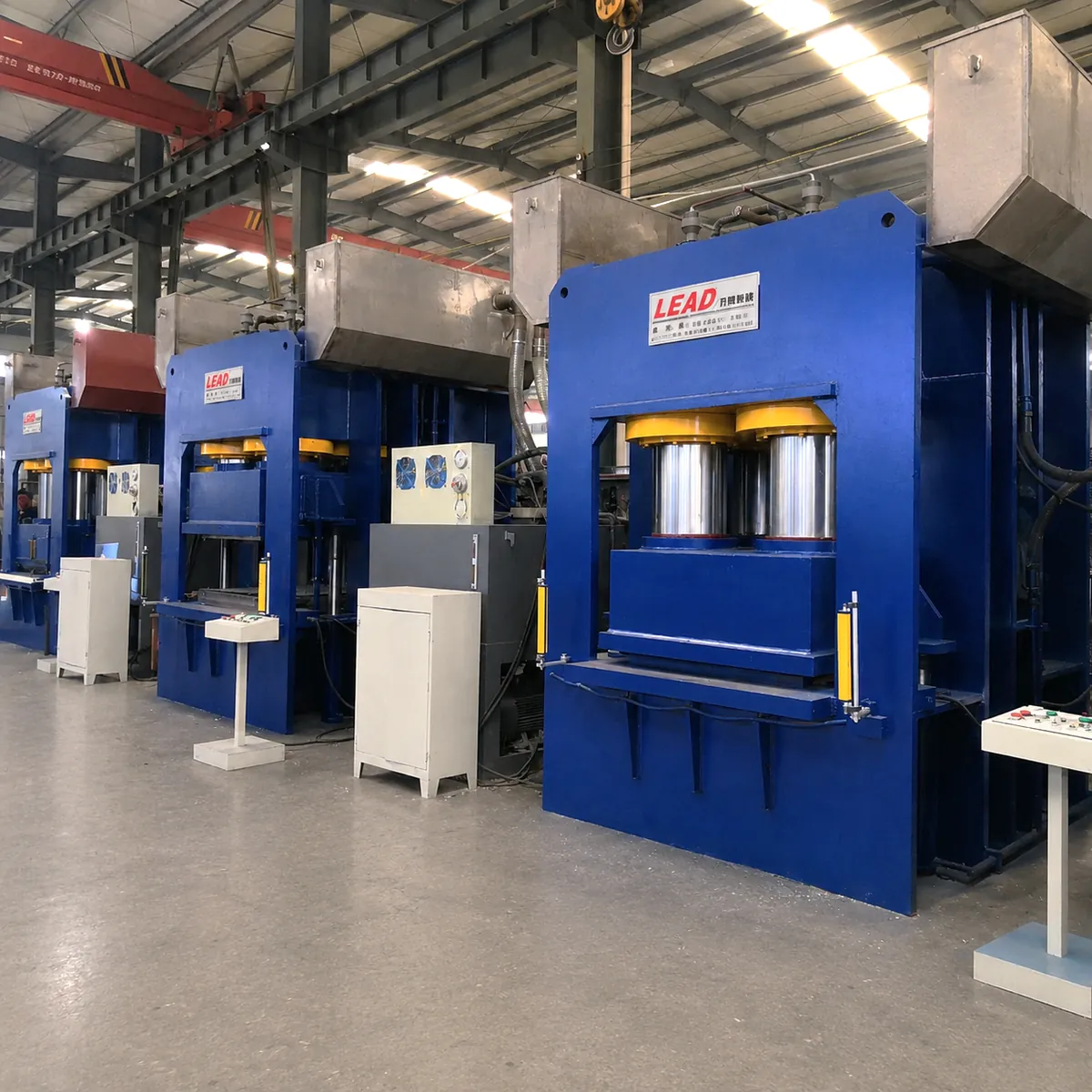

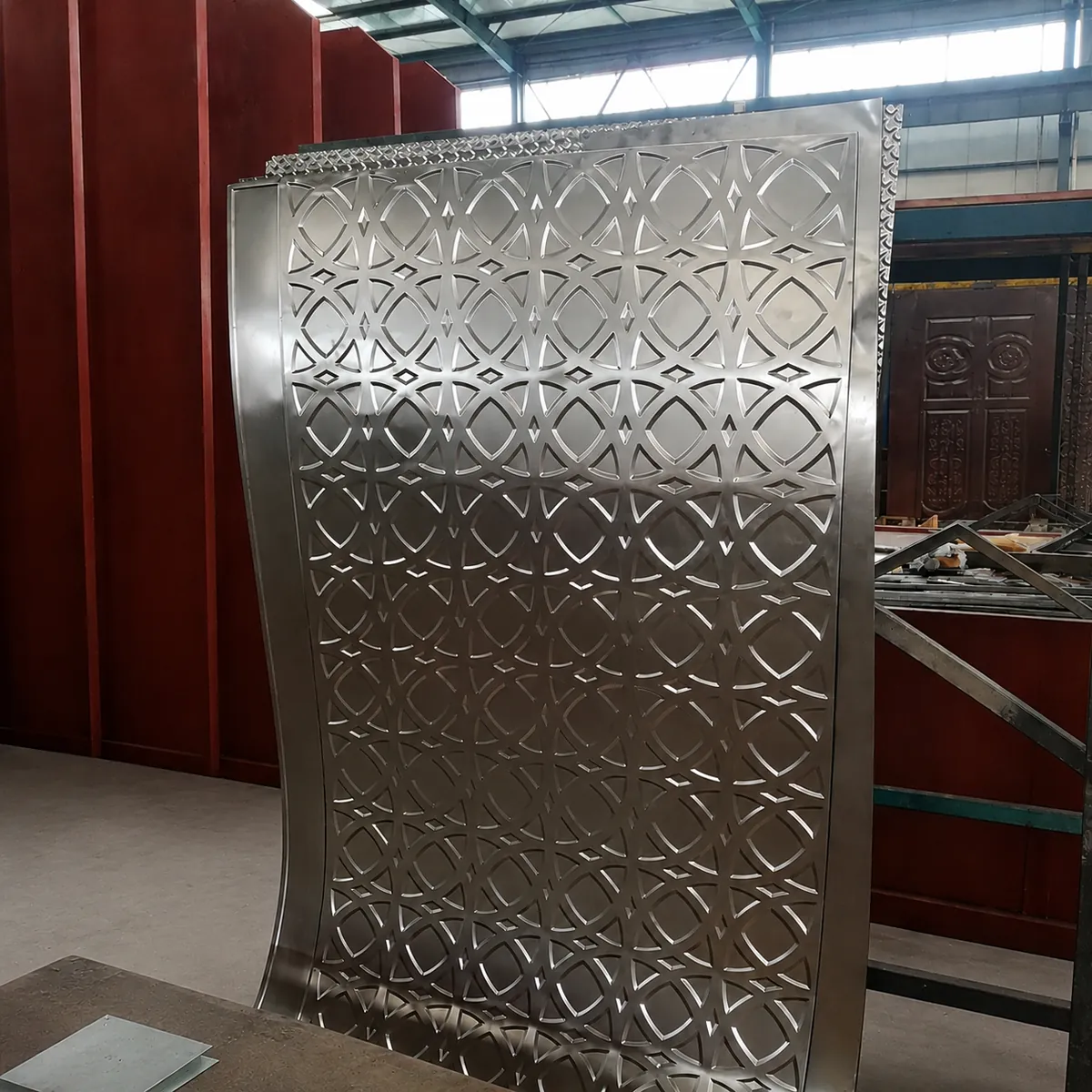

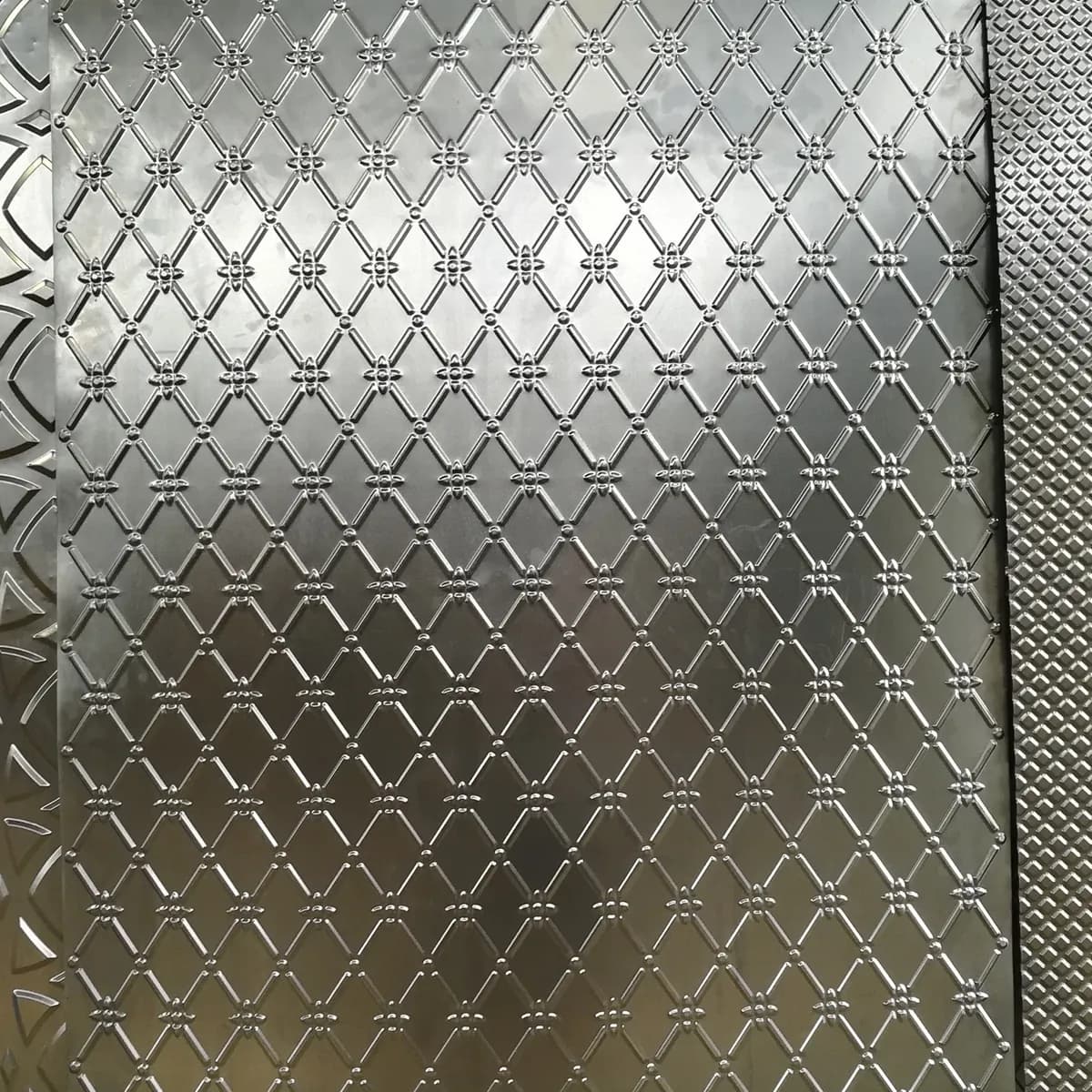

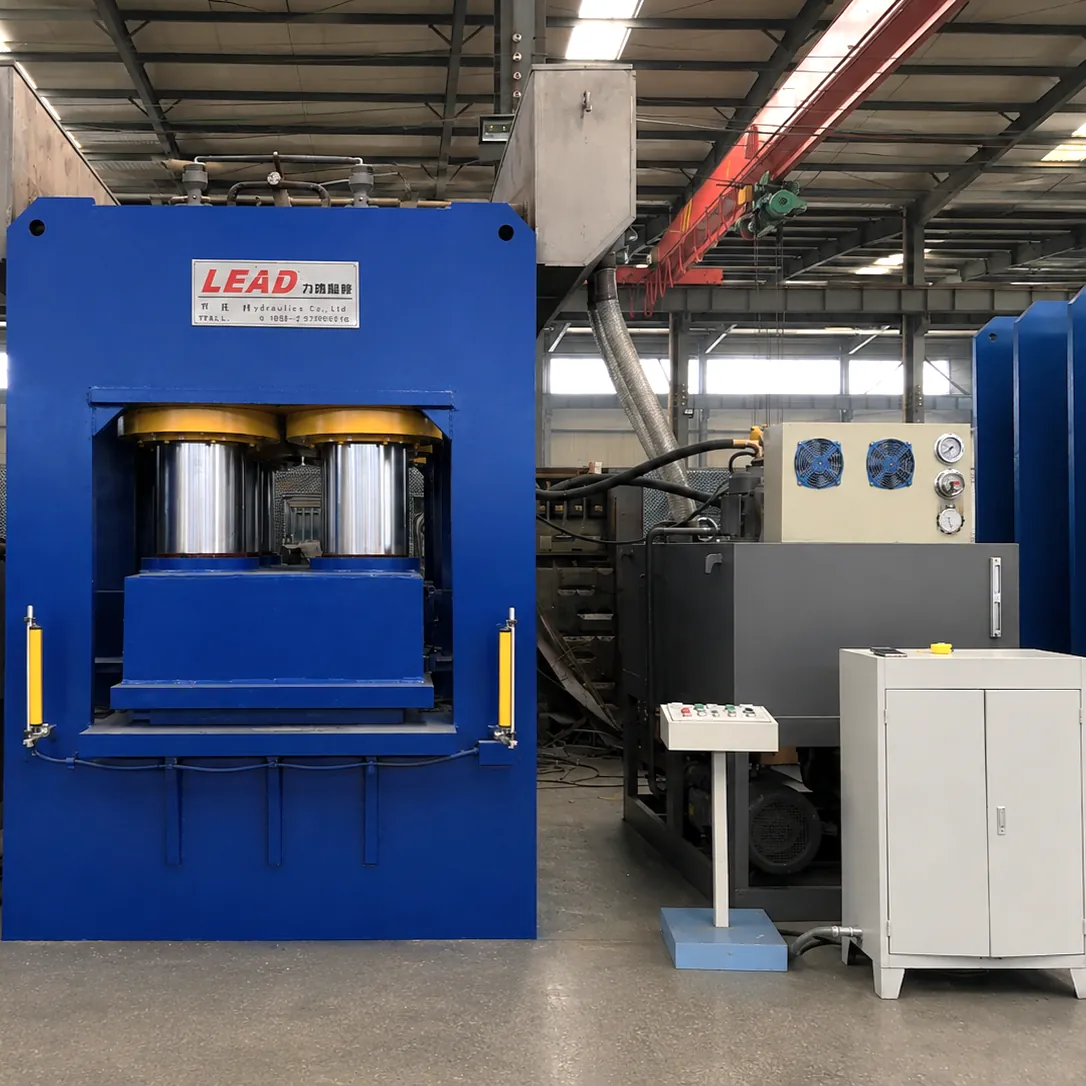

The LD-3000T door panel embossing press forms deep, crisp patterns on steel and steel-wood door skins in a single cycle. A high-rigidity frame and multi-cylinder layout keep pattern depth uniform across the full panel, while quick-die-change design supports high-mix door production lines.
Technical Specifications
- Nominal force
- 3000T
- Slide stroke
- 500 mm
- Max. opening height
- 800 mm
- Worktable size
- 1500 x 2700 mm
- Motor power
- 220 kW
- Machine weight
- approx. 180 T
- Customization options
- worktable size, stroke, opening height, ejector, servo system, light curtain, and PLC/touch-screen controls.
- 110% load test before shipment
- OEM/ODM customization available
- English manuals & test report
- Global installation support
Technical Description
The LD-3000T door panel embossing press forms deep, crisp patterns on steel and steel-wood door skins in a single cycle. A high-rigidity frame and multi-cylinder layout keep pattern depth uniform across the full panel, while quick-die-change design supports high-mix door production lines.
Technical parameters (for reference):
Nominal force: 3000T
Slide stroke: 500 mm
Max. opening height: 800 mm
Worktable size: 1500 x 2700 mm
Motor power: 220 kW
Machine weight: approx. 180 T
Customization options: worktable size, stroke, opening height, ejector, servo system, light curtain, and PLC/touch-screen controls.
