Single Column Hydraulic Press100T Nominal Force

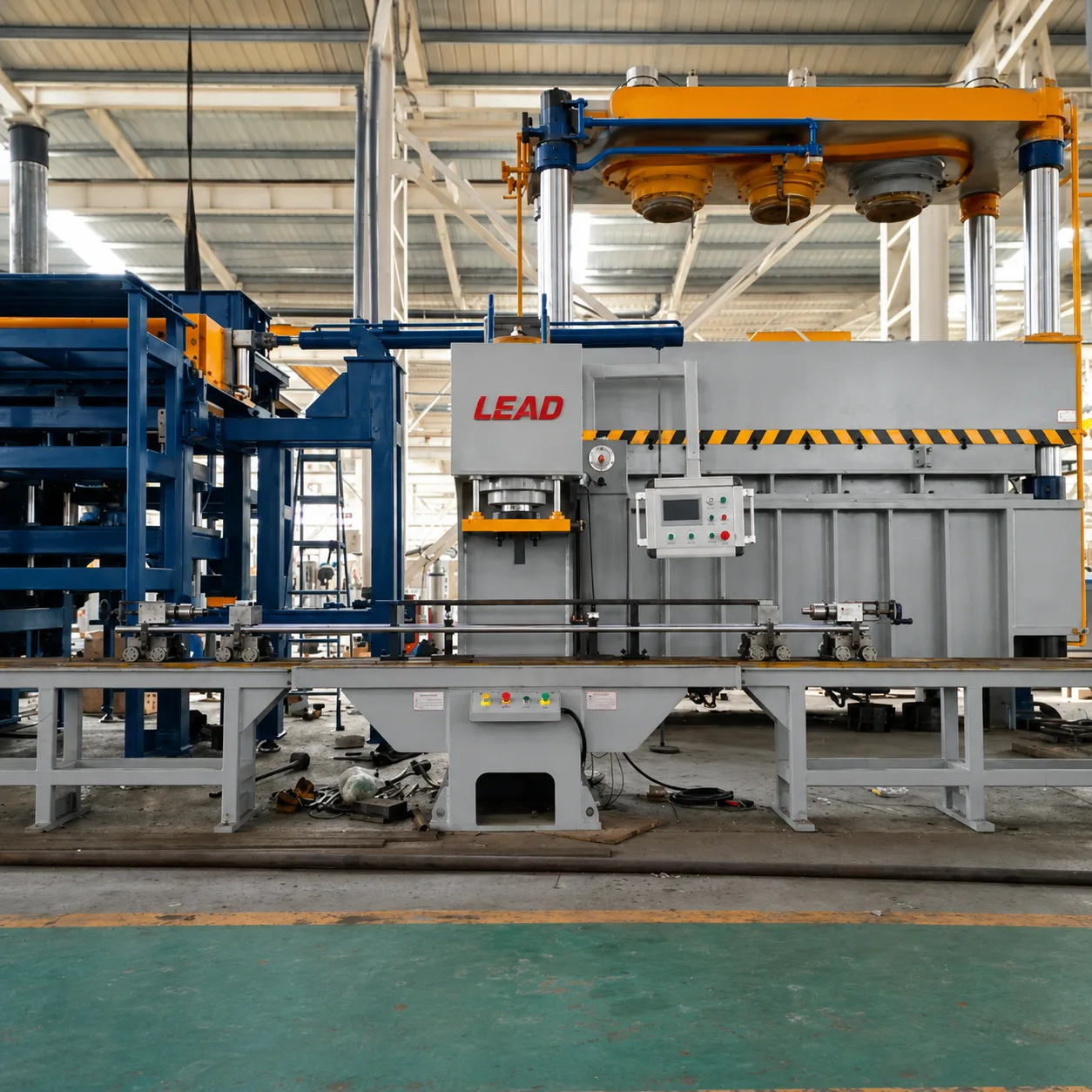

LD-100T C-Frame Straightening Hydraulic Press
Overview
The LD-100T C-frame straightening hydraulic press is designed for precision straightening of shafts, bars, tubes, and profiles. Its open-front single column frame allows quick workpiece positioning, while adjustable pressure and stroke ensure accurate, repeatable correction from 5T to 500T class machines.
Technical Specifications
- Nominal force
- 100T
- Slide stroke
- 320 mm
- Max. opening height
- 800 mm
- Worktable size
- 800 x 700 mm
- Motor power
- 7.5 kW
- Machine weight
- approx. 4.5 T
- Customization options
- worktable size, stroke, opening height, ejector, servo system, light curtain, and PLC/touch-screen controls.
- 110% load test before shipment
- OEM/ODM customization available
- English manuals & test report
- Global installation support
Technical Description

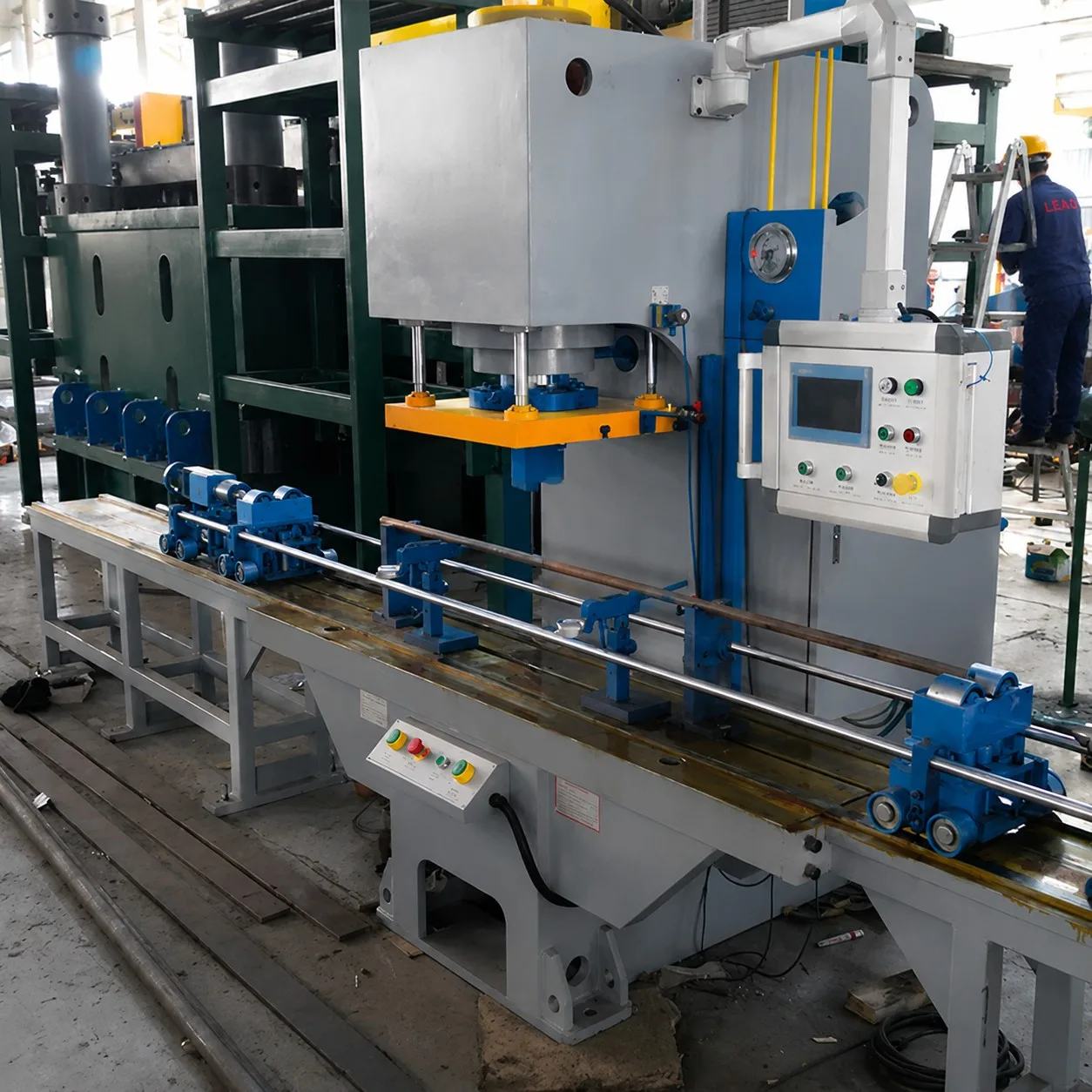

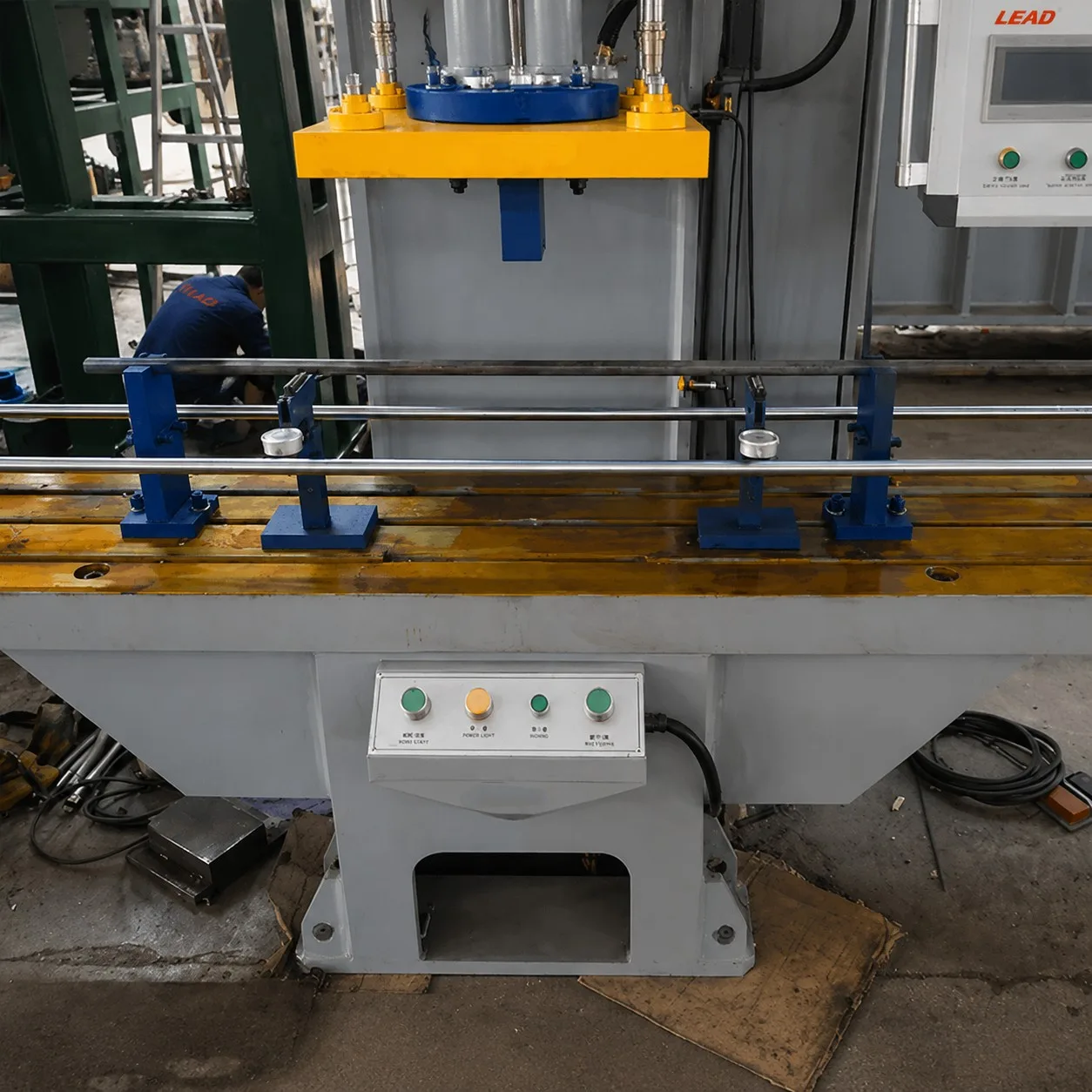

This straightening (shaft/profile alignment) configuration features an open-front C-frame that gives operators unobstructed access for positioning shafts, bars, and profiles.
LD-100T C-Frame Straightening Hydraulic Press is a 100-ton single column (C-frame) hydraulic press built on a rigid welded steel frame with stress-relief treatment for long-term accuracy. The open three-side working area makes loading and unloading fast, while the cartridge-valve integrated hydraulic system delivers smooth, shock-free pressing with reliable pressure holding.
Operation modes include jog, manual, and semi-automatic cycles with both stroke-limited and pressure-limited forming. Pressure and stroke are easily adjusted from the control panel, and PLC control with optional light-curtain safety protection is available.
Technical parameters (for reference):
Nominal force: 100T
Slide stroke: 320 mm
Max. opening height: 800 mm
Worktable size: 800 x 700 mm
Motor power: 7.5 kW
Machine weight: approx. 4.5 T
Customization options: worktable size, stroke, opening height, ejector, servo system, light curtain, and PLC/touch-screen controls.
