Single Column Hydraulic Press200T Nominal Force

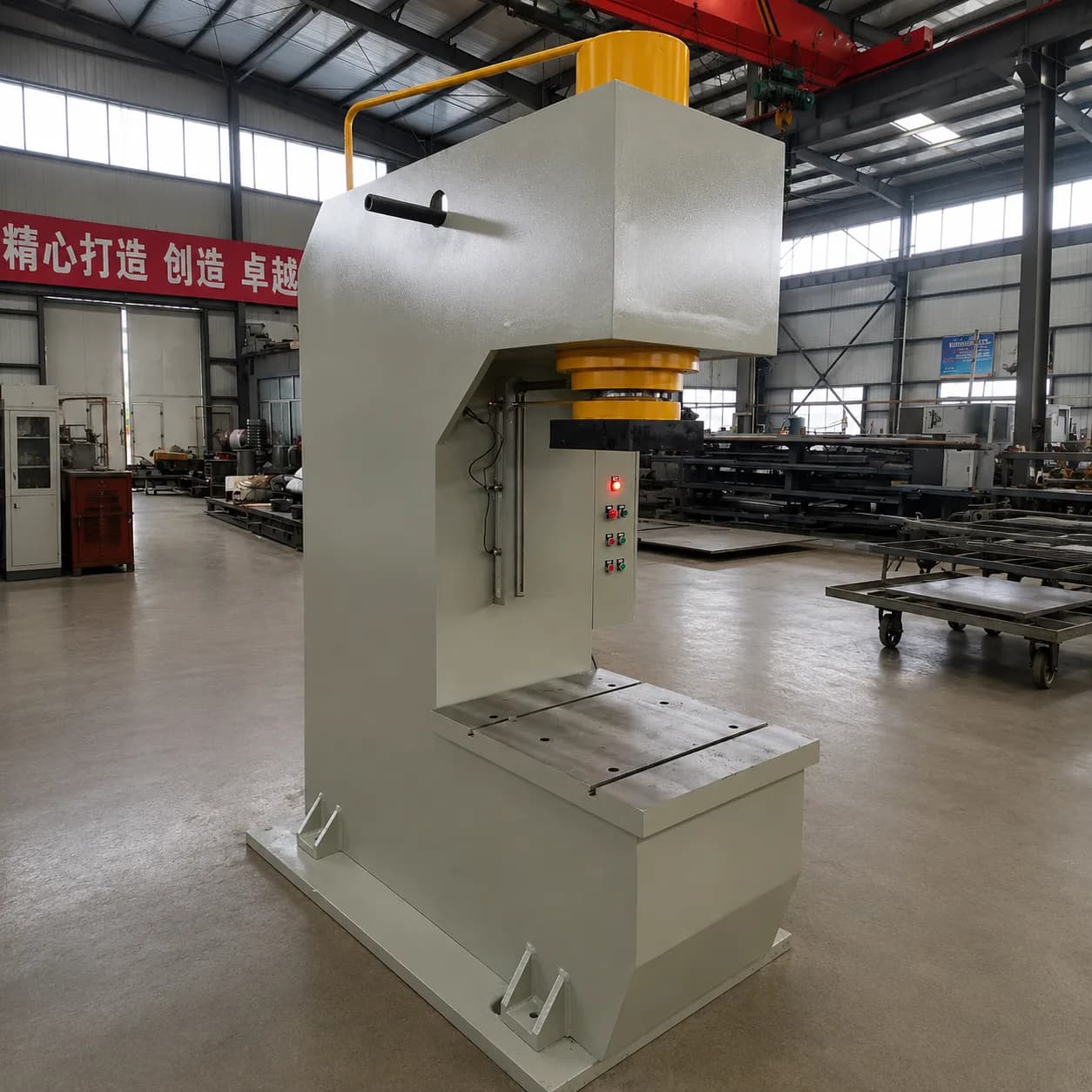

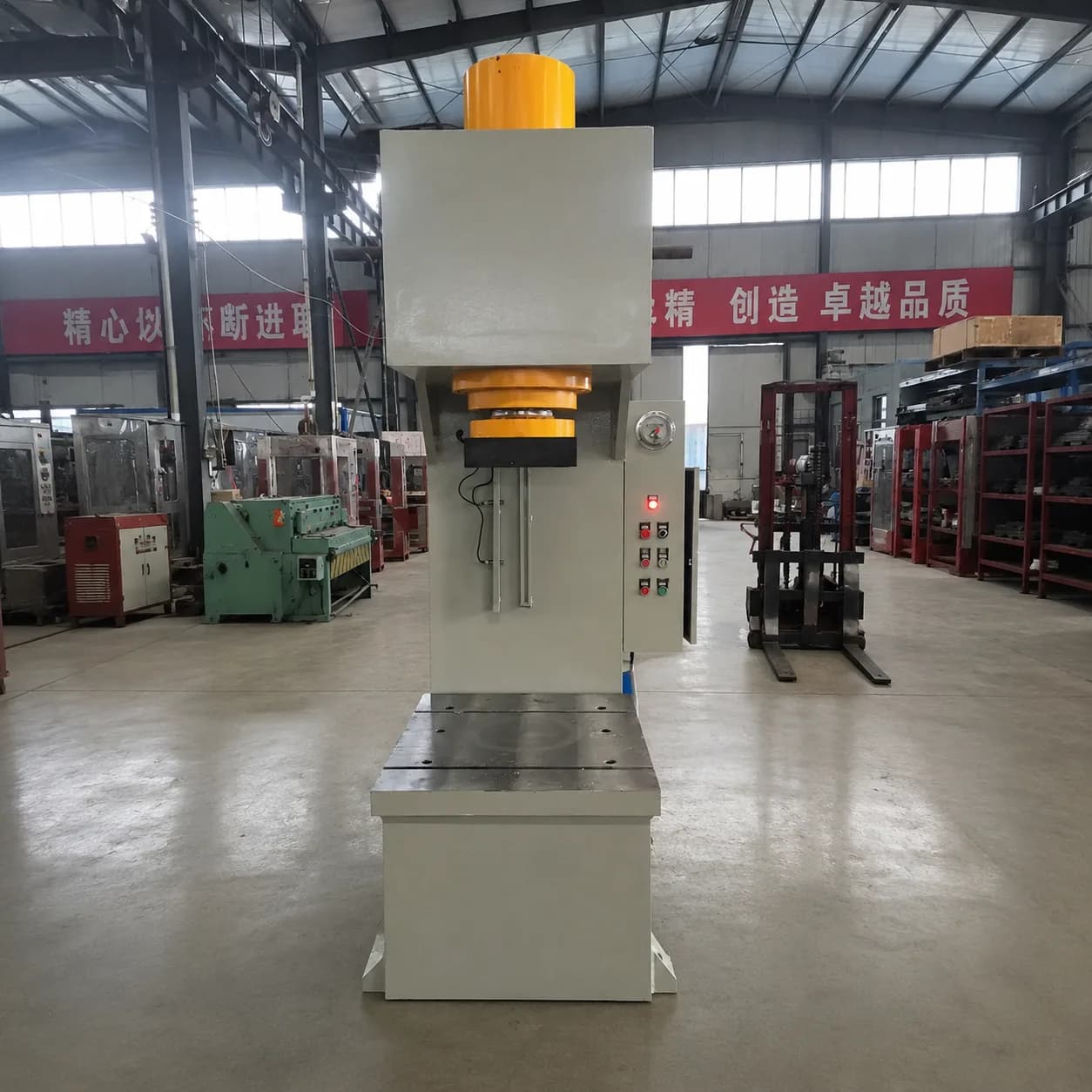

LD-200T Single Column Hydraulic Press
Overview
The LD-200T single column hydraulic press (C-frame) handles straightening, press-fitting, punching, bending, and assembly tasks in a compact footprint. A rigid welded frame and cartridge-valve hydraulic system deliver stable, accurate pressing for small to medium workpieces.
Technical Specifications
- Nominal force
- 200T
- Slide stroke
- 400 mm
- Max. opening height
- 1000 mm
- Worktable size
- 900 x 800 mm
- Motor power
- 11 kW
- Machine weight
- approx. 8 T
- Customization options
- worktable size, stroke, opening height, ejector, servo system, light curtain, and PLC/touch-screen controls.
- 110% load test before shipment
- OEM/ODM customization available
- English manuals & test report
- Global installation support
Technical Description
LD-200T Single Column Hydraulic Press is a 200-ton single column (C-frame) hydraulic press built on a rigid welded steel frame with stress-relief treatment for long-term accuracy. The open three-side working area makes loading and unloading fast, while the cartridge-valve integrated hydraulic system delivers smooth, shock-free pressing with reliable pressure holding.
Operation modes include jog, manual, and semi-automatic cycles with both stroke-limited and pressure-limited forming. Pressure and stroke are easily adjusted from the control panel, and PLC control with optional light-curtain safety protection is available.
Technical parameters (for reference):
Nominal force: 200T
Slide stroke: 400 mm
Max. opening height: 1000 mm
Worktable size: 900 x 800 mm
Motor power: 11 kW
Machine weight: approx. 8 T
Customization options: worktable size, stroke, opening height, ejector, servo system, light curtain, and PLC/touch-screen controls.
