Single Column Hydraulic Press200T Nominal Force

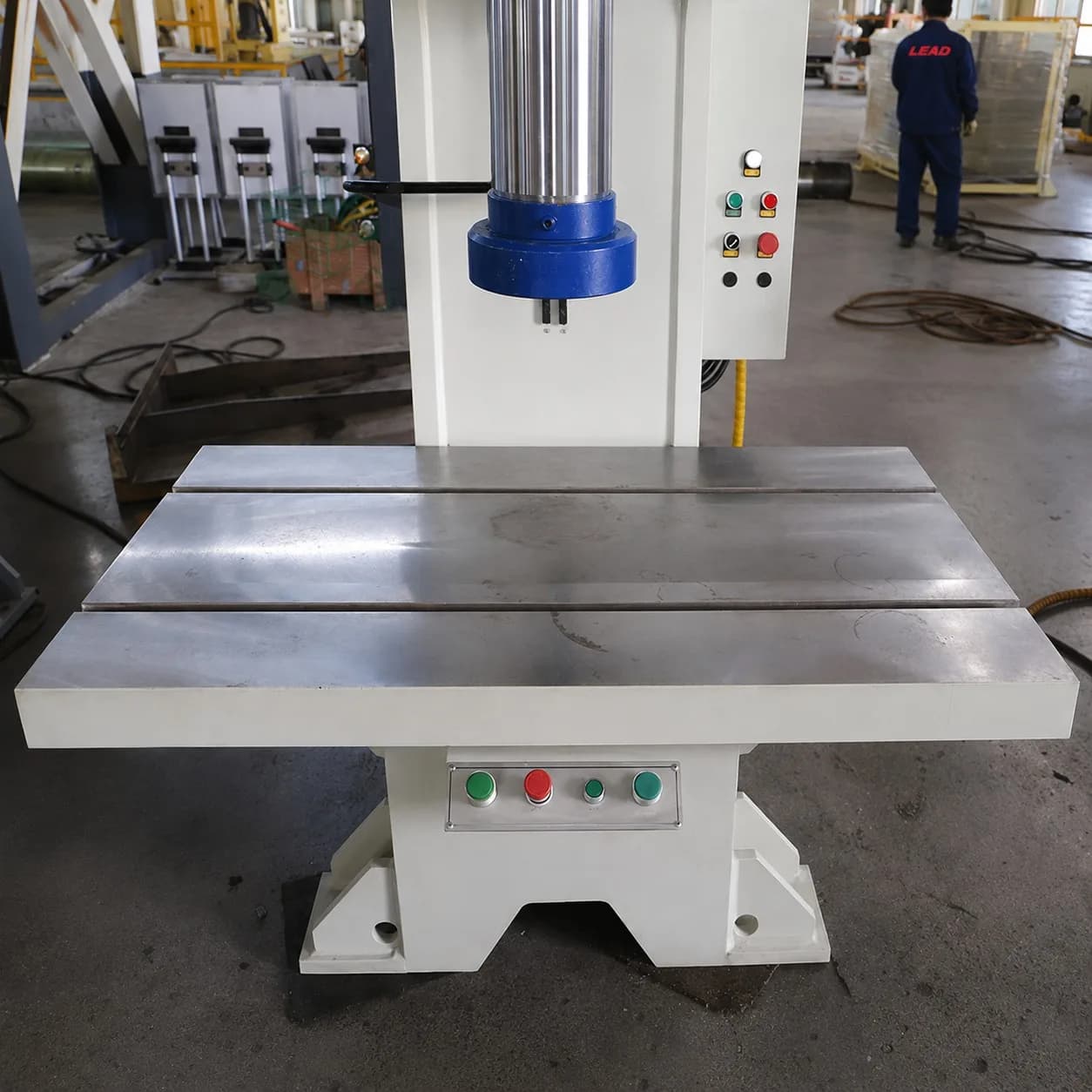

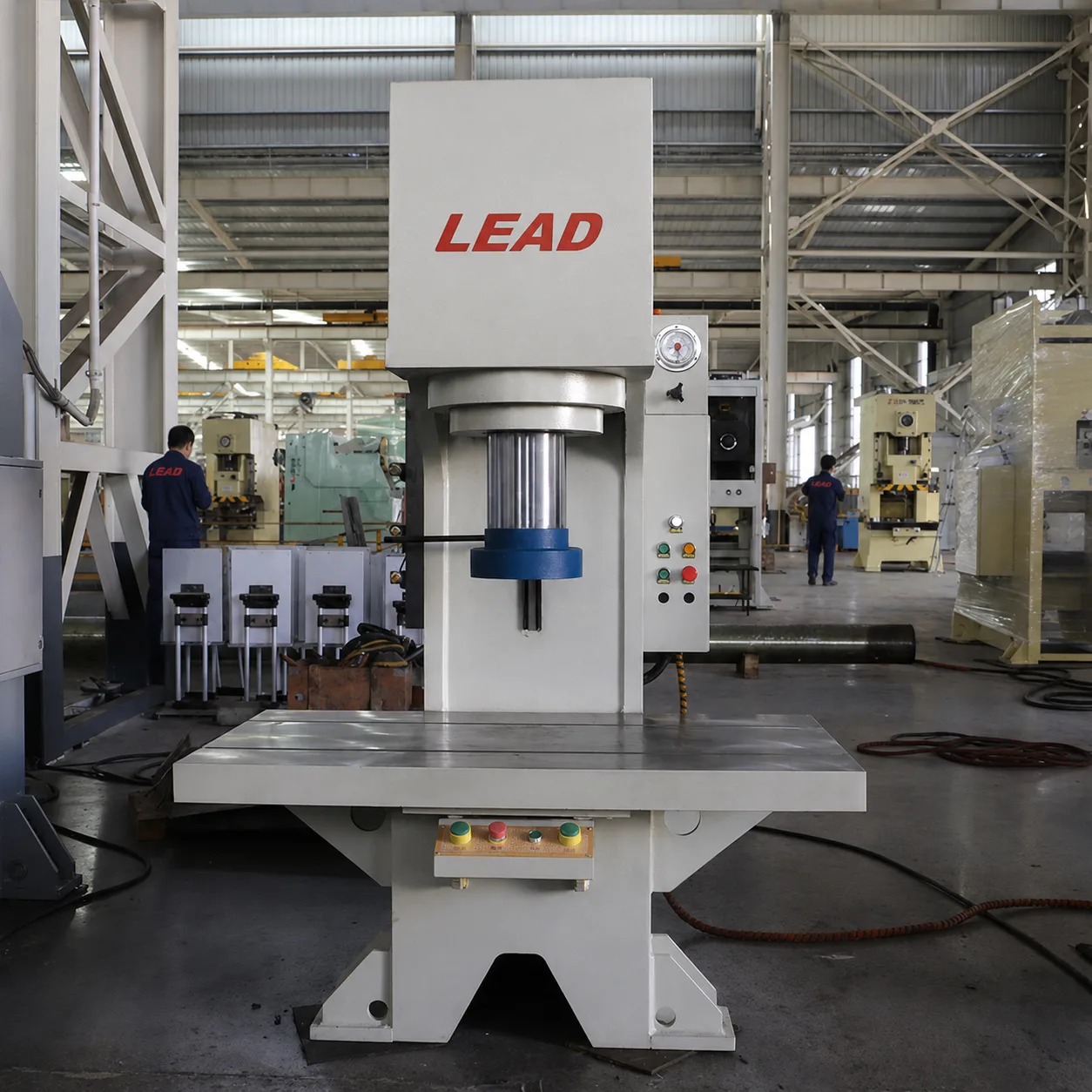

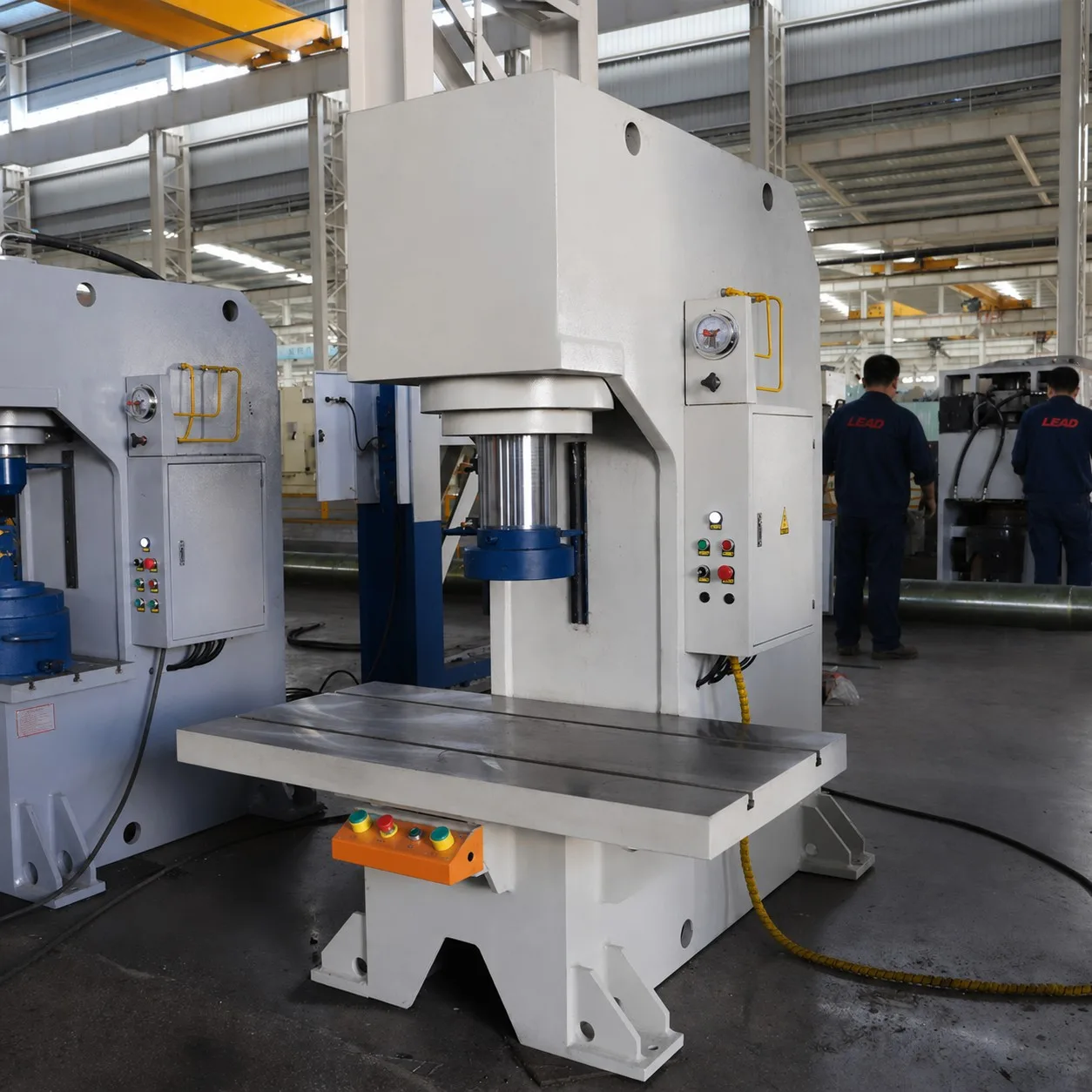

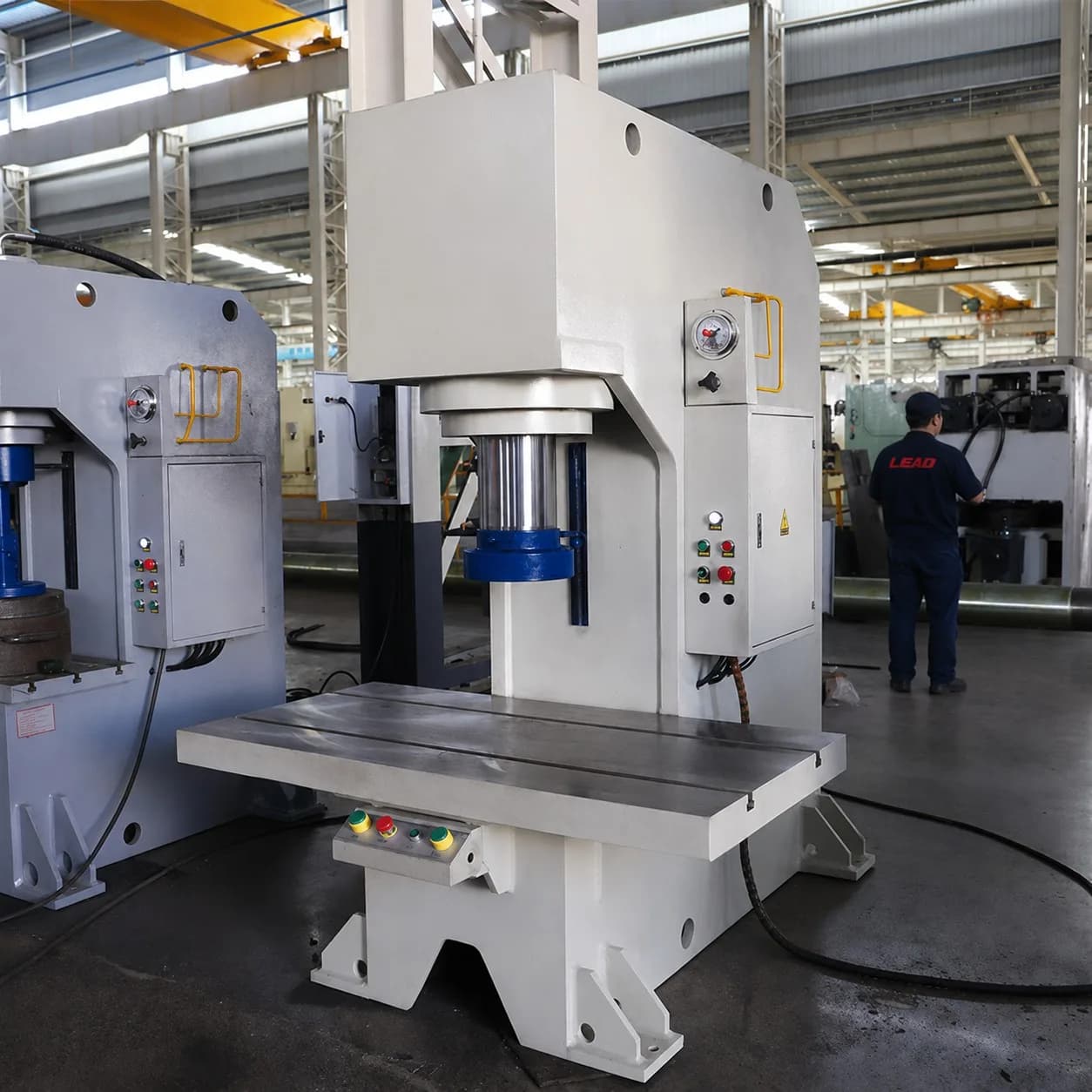

LD-200T C-Frame Straightening Hydraulic Press
Overview
The LD-200T C-frame straightening hydraulic press is designed for precision straightening of shafts, bars, tubes, and profiles. Its open-front single column frame allows quick workpiece positioning, while adjustable pressure and stroke ensure accurate, repeatable correction from 5T to 500T class machines.
Technical Specifications
- Nominal force
- 200T
- Slide stroke
- 400 mm
- Max. opening height
- 1000 mm
- Worktable size
- 900 x 800 mm
- Motor power
- 11 kW
- Machine weight
- approx. 8 T
- Customization options
- worktable size, stroke, opening height, ejector, servo system, light curtain, and PLC/touch-screen controls.
- 110% load test before shipment
- OEM/ODM customization available
- English manuals & test report
- Global installation support
Technical Description
This straightening (shaft/profile alignment) configuration features an open-front C-frame that gives operators unobstructed access for positioning shafts, bars, and profiles.
LD-200T C-Frame Straightening Hydraulic Press is a 200-ton single column (C-frame) hydraulic press built on a rigid welded steel frame with stress-relief treatment for long-term accuracy. The open three-side working area makes loading and unloading fast, while the cartridge-valve integrated hydraulic system delivers smooth, shock-free pressing with reliable pressure holding.
Operation modes include jog, manual, and semi-automatic cycles with both stroke-limited and pressure-limited forming. Pressure and stroke are easily adjusted from the control panel, and PLC control with optional light-curtain safety protection is available.
Technical parameters (for reference):
Nominal force: 200T
Slide stroke: 400 mm
Max. opening height: 1000 mm
Worktable size: 900 x 800 mm
Motor power: 11 kW
Machine weight: approx. 8 T
Customization options: worktable size, stroke, opening height, ejector, servo system, light curtain, and PLC/touch-screen controls.
