H Frame Hydraulic Press200T Nominal Force
200T Hydraulic Press for Metal Steel Stainless Steel Iron Sheet Plate Stamping Deep Drawing Forming Molding
Overview

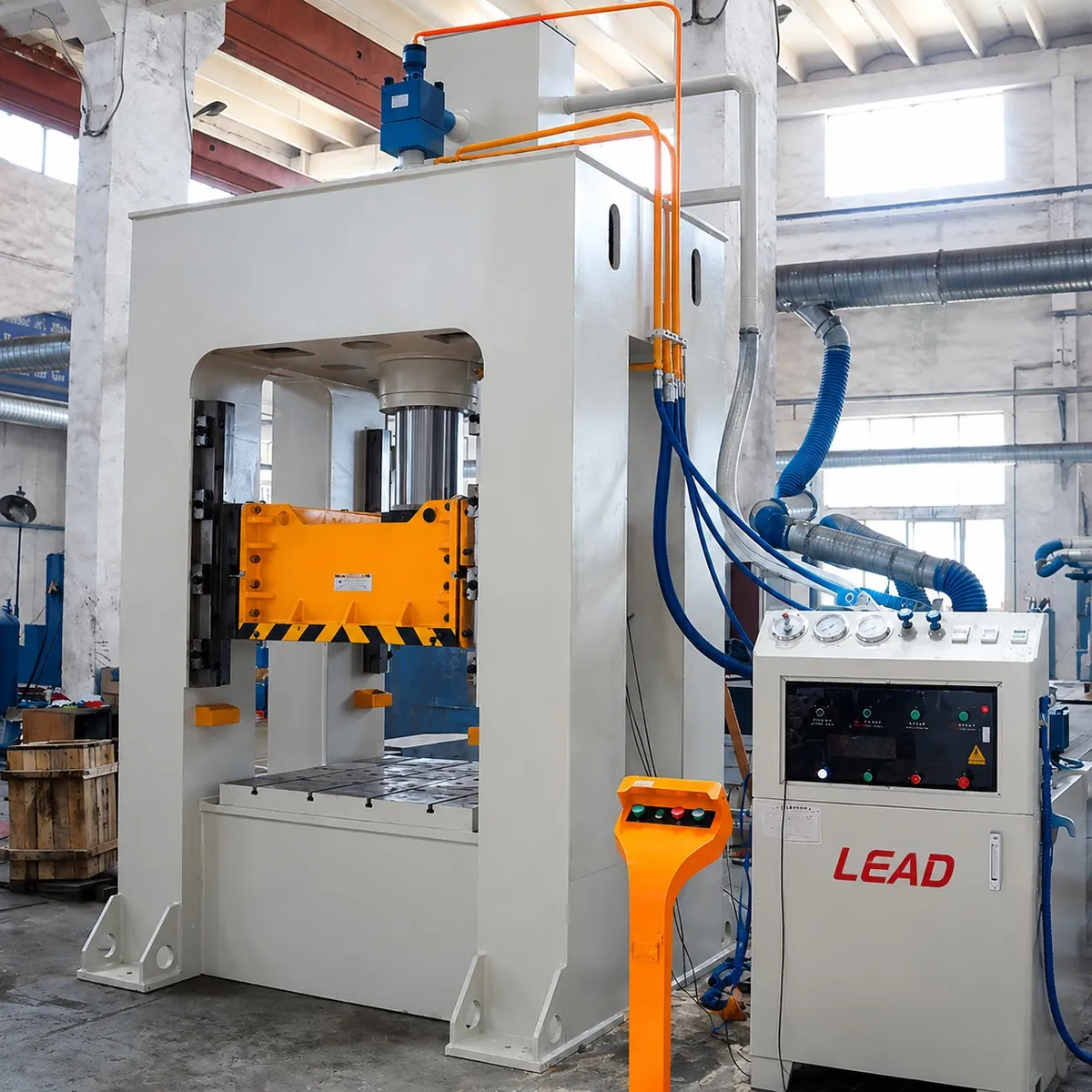

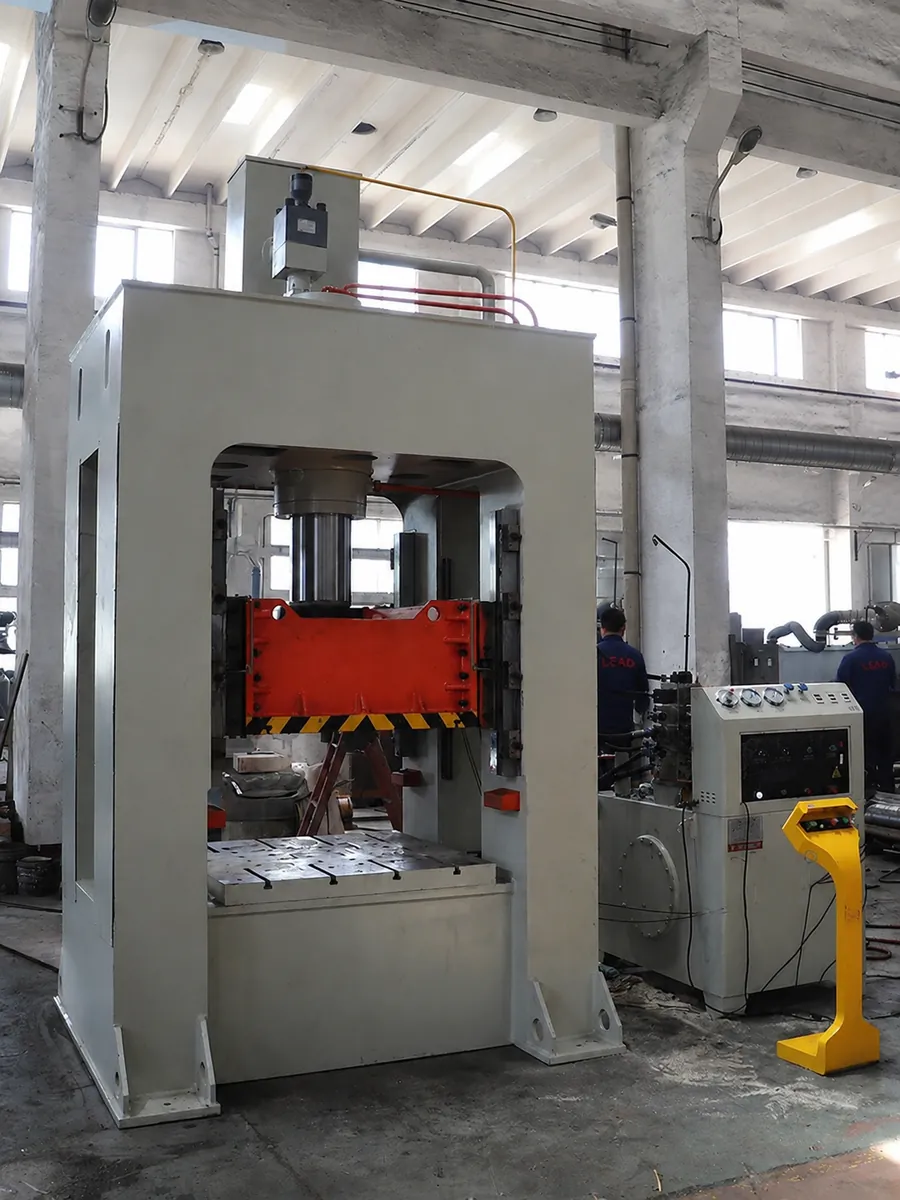

The LD-200T H frame hydraulic press is built for deep drawing of sheet metal parts, combining a rigid welded H-frame structure with high guiding precision and strong resistance to eccentric loads. Cartridge-valve hydraulics and PLC controls deliver smooth, repeatable cycles for continuous production. Table size, stroke, and automation level are customized to your process.
Technical Specifications
- Nominal force
- 200T
- Slide stroke
- 400 mm
- Max. opening height
- 800 mm
- Worktable size
- 900 x 800 mm
- Motor power
- 15 kW
- Machine weight
- approx. 7 T
- Customization options
- worktable size, stroke, opening height, ejector, servo system, light curtain, and PLC/touch-screen controls.
- 110% load test before shipment
- OEM/ODM customization available
- English manuals & test report
- Global installation support
Technical Description
The LD-200T H frame hydraulic press is built for deep drawing of sheet metal parts, combining a rigid welded H-frame structure with high guiding precision and strong resistance to eccentric loads. Cartridge-valve hydraulics and PLC controls deliver smooth, repeatable cycles for continuous production. Table size, stroke, and automation level are customized to your process.
Technical parameters (for reference):
Nominal force: 200T
Slide stroke: 400 mm
Max. opening height: 800 mm
Worktable size: 900 x 800 mm
Motor power: 15 kW
Machine weight: approx. 7 T
Customization options: worktable size, stroke, opening height, ejector, servo system, light curtain, and PLC/touch-screen controls.
