H Frame Hydraulic Press315T Nominal Force
315T Hydraulic Press for Metal Steel Stainless Steel Iron Sheet Plate Stamping Deep Drawing Forming Molding
Overview

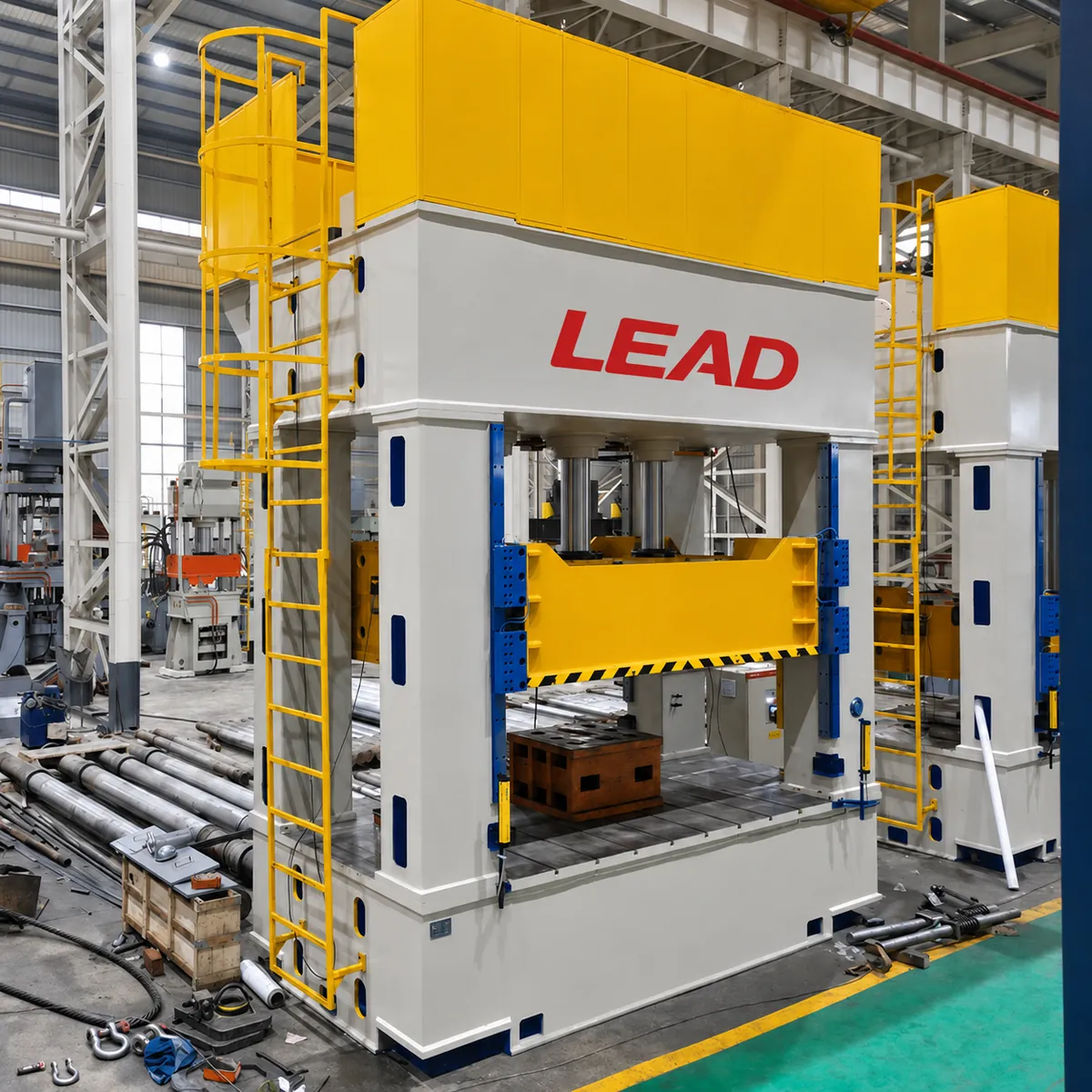

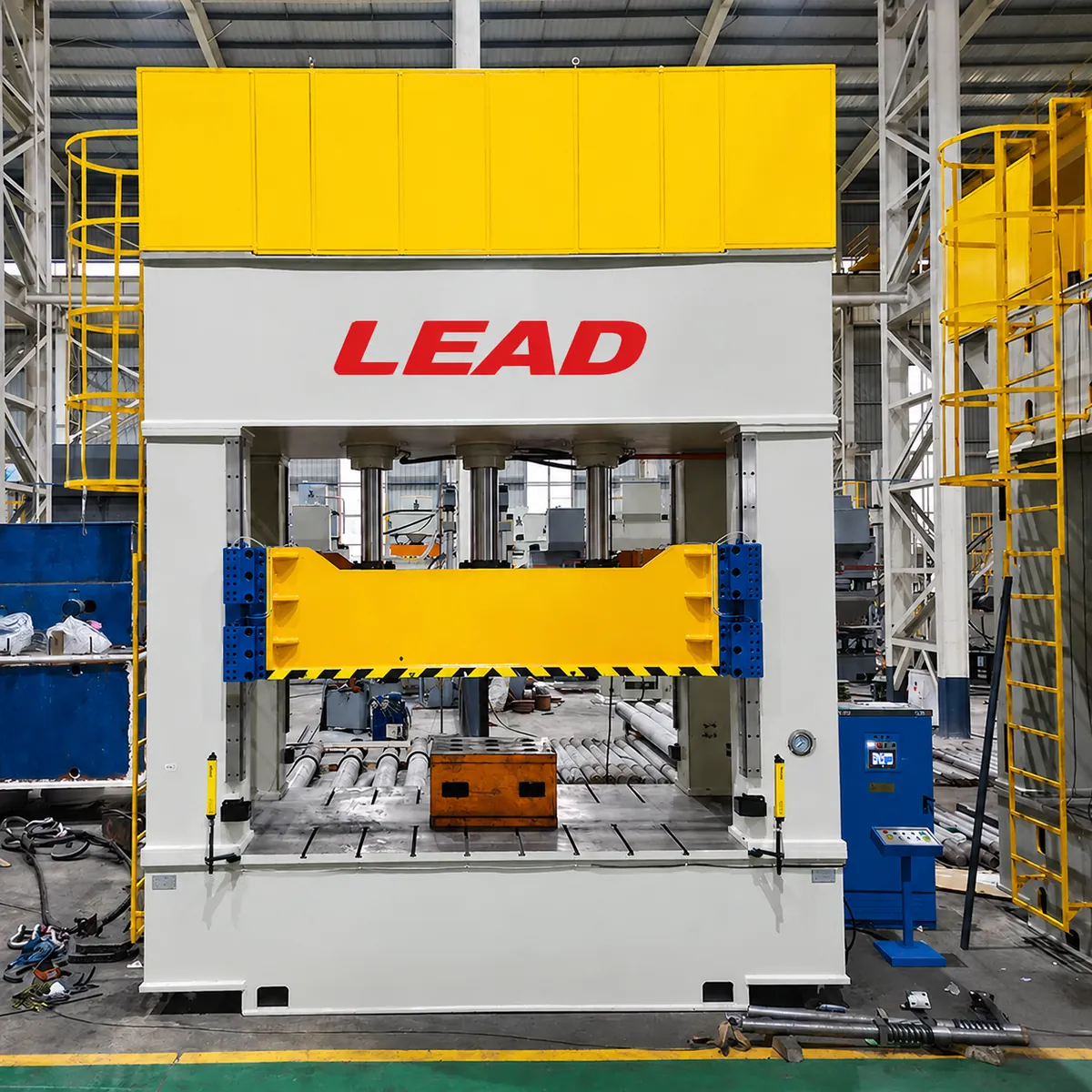

The LD-315T H frame hydraulic press is built for deep drawing of sheet metal parts, combining a rigid welded H-frame structure with high guiding precision and strong resistance to eccentric loads. Cartridge-valve hydraulics and PLC controls deliver smooth, repeatable cycles for continuous production. Table size, stroke, and automation level are customized to your process.
Technical Specifications
- Nominal force
- 315T
- Slide stroke
- 450 mm
- Max. opening height
- 900 mm
- Worktable size
- 1000 x 900 mm
- Motor power
- 18.5 kW
- Machine weight
- approx. 10 T

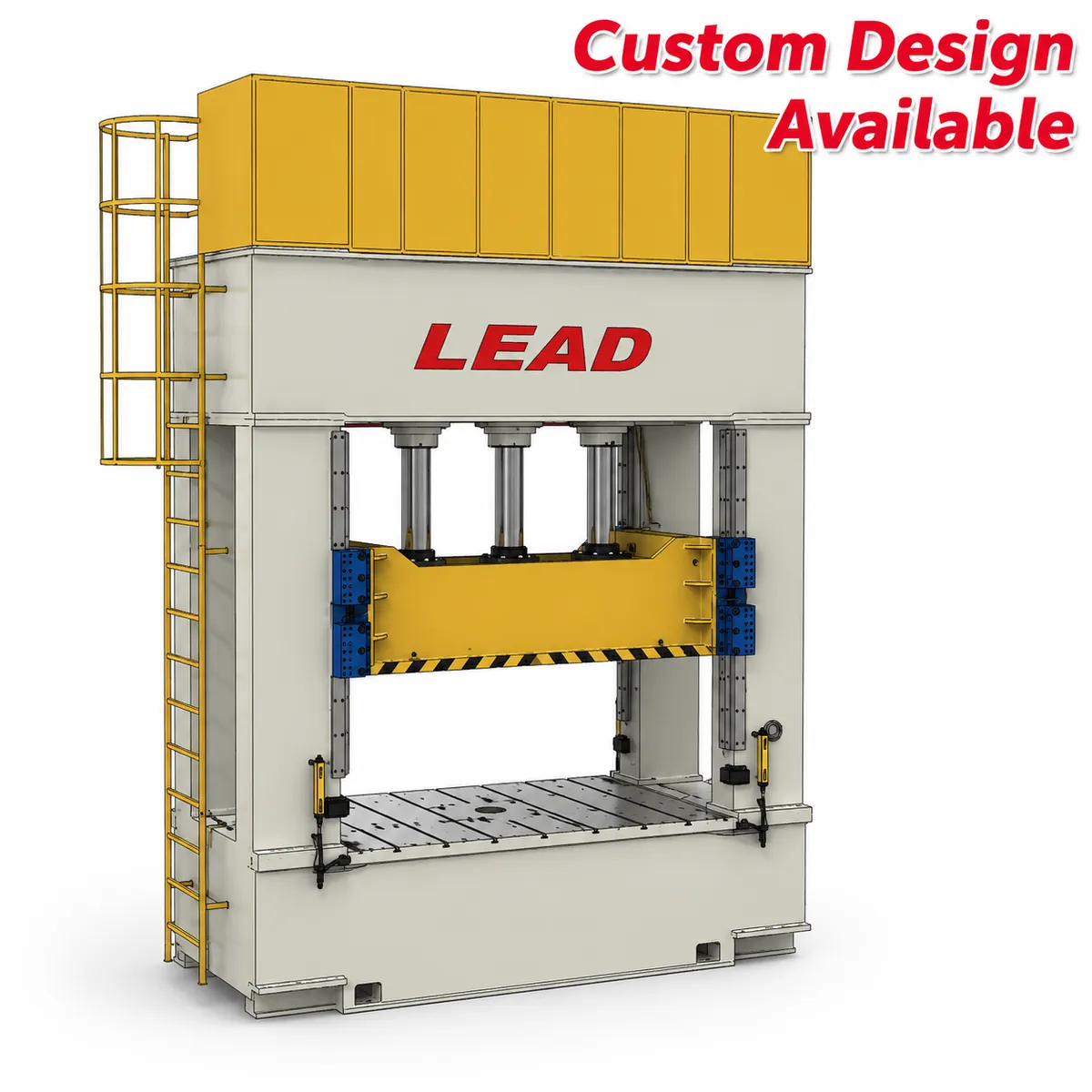

- Customization options
- worktable size, stroke, opening height, ejector, servo system, light curtain, and PLC/touch-screen controls.
- 110% load test before shipment
- OEM/ODM customization available
- English manuals & test report
- Global installation support
Technical Description
The LD-315T H frame hydraulic press is built for deep drawing of sheet metal parts, combining a rigid welded H-frame structure with high guiding precision and strong resistance to eccentric loads. Cartridge-valve hydraulics and PLC controls deliver smooth, repeatable cycles for continuous production. Table size, stroke, and automation level are customized to your process.
Technical parameters (for reference):
Nominal force: 315T
Slide stroke: 450 mm
Max. opening height: 900 mm
Worktable size: 1000 x 900 mm
Motor power: 18.5 kW
Machine weight: approx. 10 T
Customization options: worktable size, stroke, opening height, ejector, servo system, light curtain, and PLC/touch-screen controls.
