Door Panel Embossing Machine2500T Nominal Force
2500T Single Action Hydraulic Press for Steel Iron Metal Door Panel Embossing Pressing Forming Molding Security Door
Overview

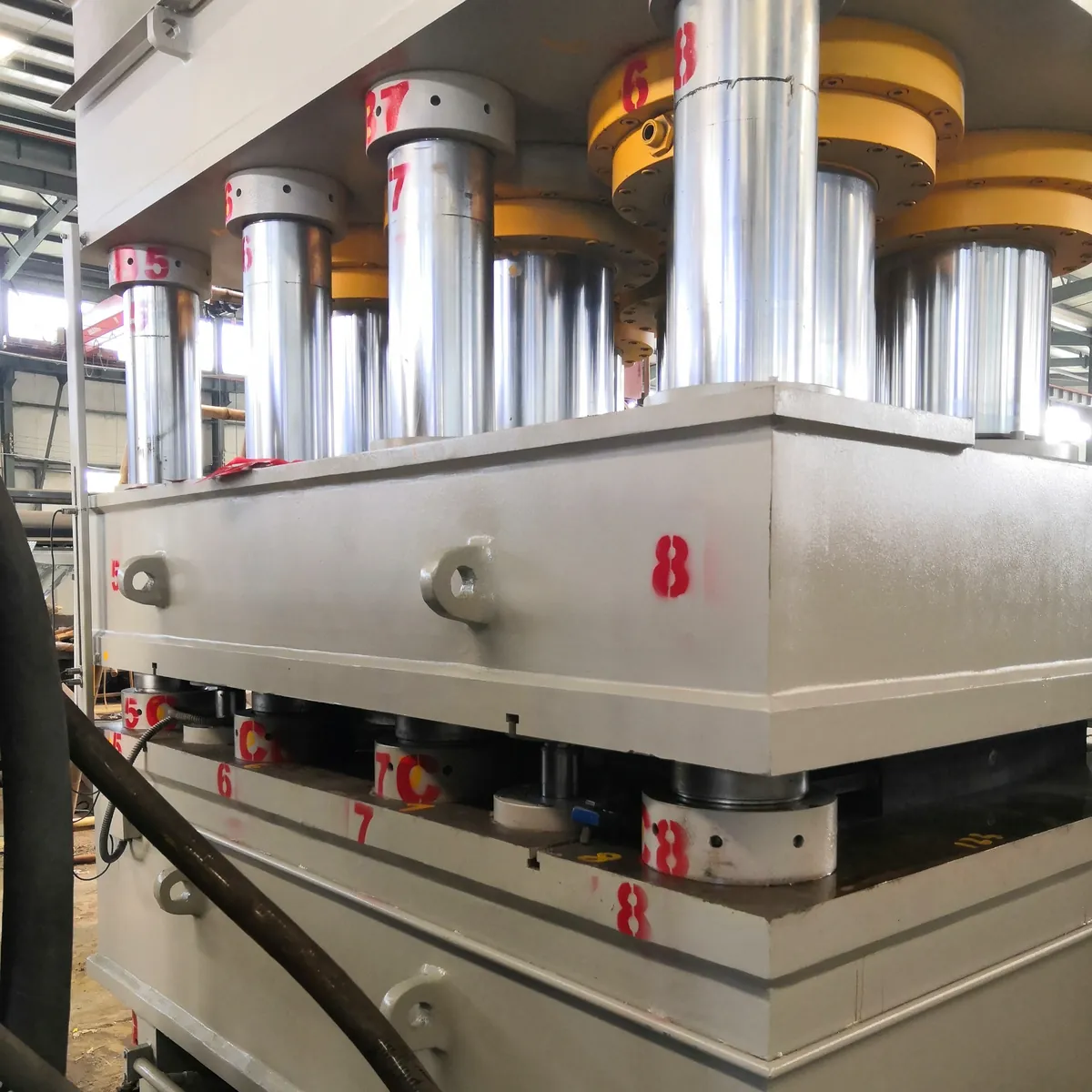

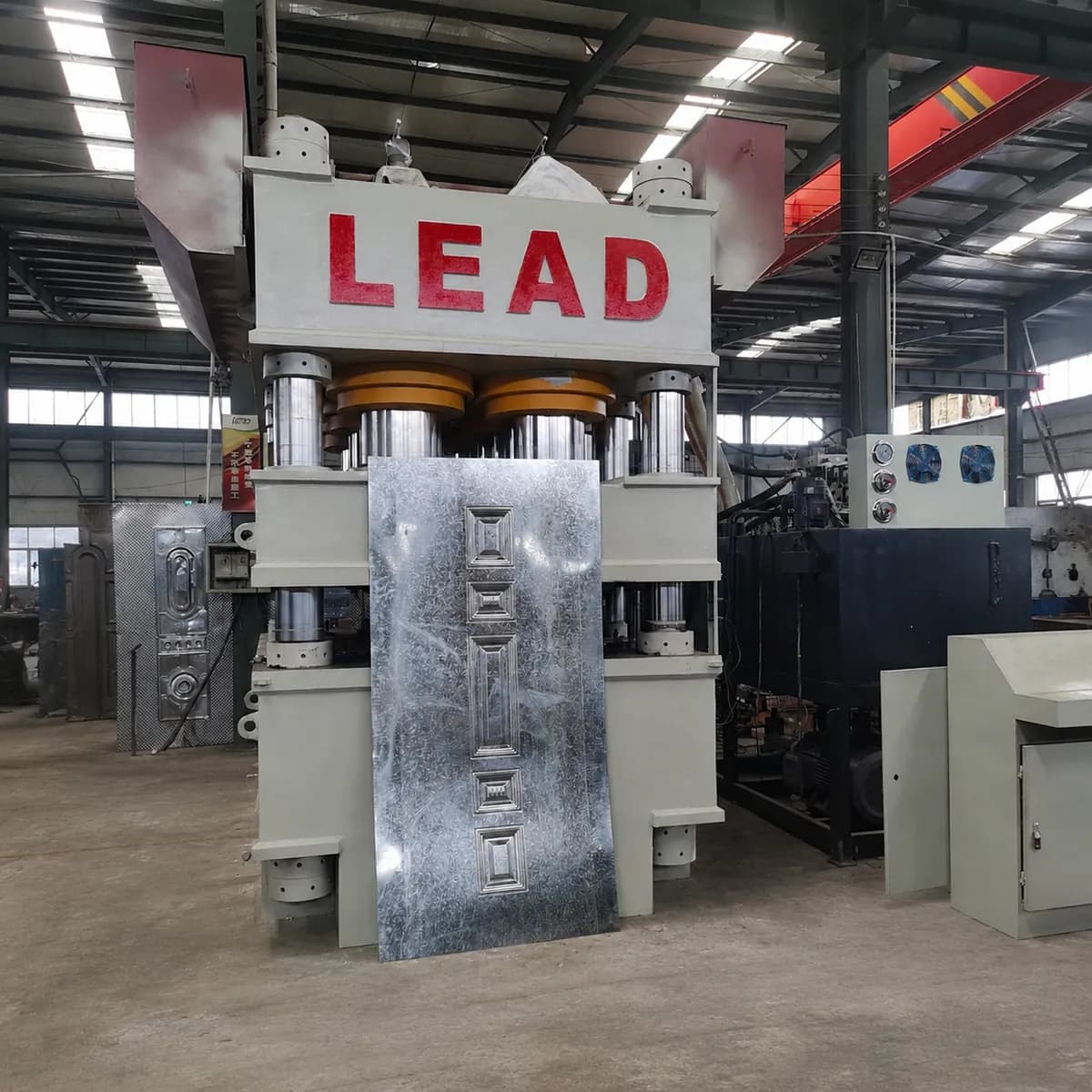

The LD-2500T door panel embossing press forms deep, crisp patterns on steel and steel-wood door skins in a single cycle. A high-rigidity frame and multi-cylinder layout keep pattern depth uniform across the full panel, while quick-die-change design supports high-mix door production lines.
Technical Specifications
- Nominal force
- 2500T
- Slide stroke
- 1000 mm
- Max. opening height
- 1500 mm
- Worktable size
- 2500 x 2200 mm
- Motor power
- 180 kW
- Machine weight
- approx. 150 T
- Customization options
- worktable size, stroke, opening height, ejector, servo system, light curtain, and PLC/touch-screen controls.
- 110% load test before shipment
- OEM/ODM customization available
- English manuals & test report
- Global installation support
Technical Description
The LD-2500T door panel embossing press forms deep, crisp patterns on steel and steel-wood door skins in a single cycle. A high-rigidity frame and multi-cylinder layout keep pattern depth uniform across the full panel, while quick-die-change design supports high-mix door production lines.
Technical parameters (for reference):
Nominal force: 2500T
Slide stroke: 1000 mm
Max. opening height: 1500 mm
Worktable size: 2500 x 2200 mm
Motor power: 180 kW
Machine weight: approx. 150 T
Customization options: worktable size, stroke, opening height, ejector, servo system, light curtain, and PLC/touch-screen controls.
